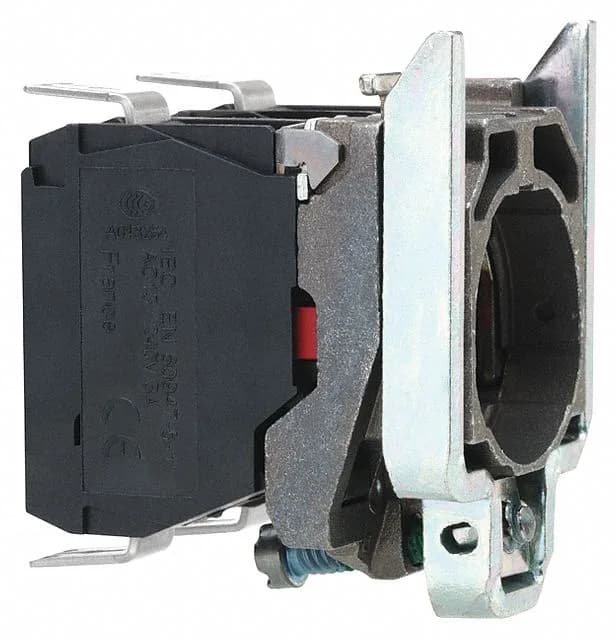

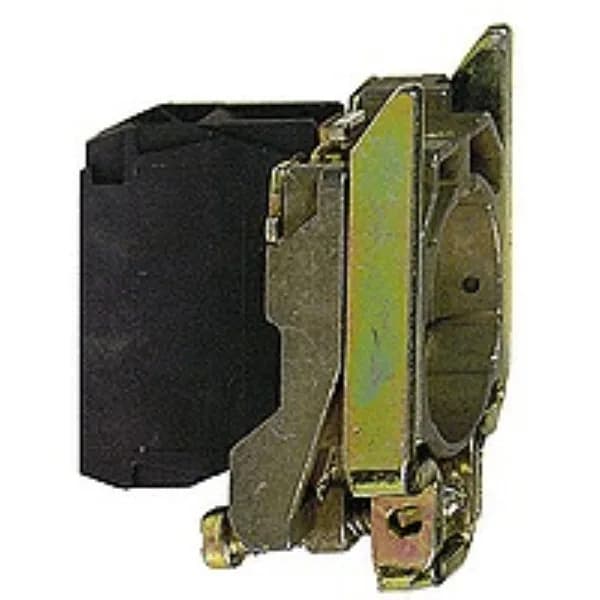

Schneider Electric ZB4BZ1013
MPNZB4BZ1013
Active
22MM MOUNTING BASE W/1 N/O BLOCK+FAST-ON|Harmony complete body/contact, body for push buttons or selector switches, XB6, single contact block with body/fixing collar 1 NO faston connector
$10.67 – $26.05Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Head type | Standard |
| Range of product | Harmony XB4 |
| Contact block type | Single |
| Product or component type | Complete body/contact assembly |
| Contacts type and composition | 1 NO |
| Voltage | 250 V 3)IEC 60947-1 |
| IP degree of protection | IP20 IEC 60529 |
| Connections - terminals | Faston connector 1 x 6.35 mm Faston connector 2 x 2.8 mm |
| Terminals description ISO n°1 | (13-14)NO |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| CAD overall depth | 1.5 in (37 mm) |
All specifications
| Parameter | Value |
|---|---|
| CAD overall width | 1.2 in (30 mm) |
| Contacts material | Silver alloy (Ag/Ni) |
| CAD overall height | 1.9 in (47 mm) |
| Fixing collar material | Zamak |
| Electrical durability | 10000000 cycles |
| Mechanical durability | 5000000 cycles |
| Standards | IEC 60947-5-1 UL 508 IEC 60947-1 CSA C22.2 No 14 IEC 60947-5-4 JIS C8201-5-1 IEC 60947-5-5 JIS C8201-1 |
| Category | US10CS222469 |
| Contacts usage | Standard contacts |
| Operating force | 2.3 N NO changing electrical state |
| Operating torque | 0.44 lbf.in (0.05 N.m) NO changing electrical state |
| Operating travel | 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel) |
| Positive opening | Without |
| Contact operation | Slow-break |
| Device short name | ZB4 |
| Device composition | Body Fixing collar |
| Protective treatment | TH |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Sale per indivisible quantity | 1 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
ZB4BZ1013
