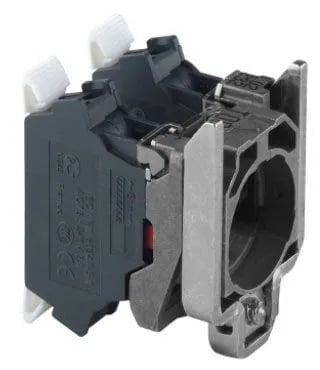

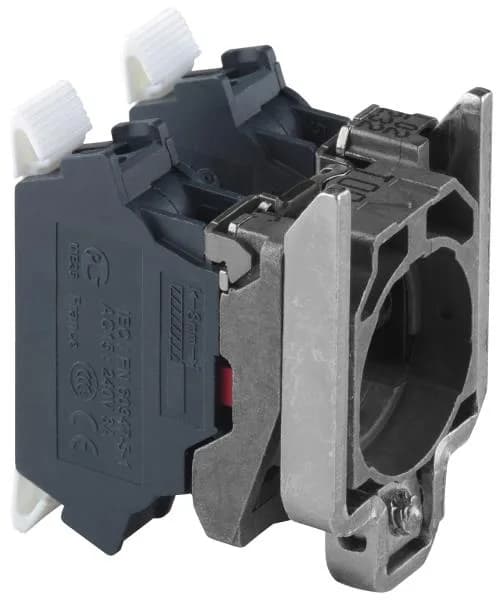

Schneider Electric ZB4BZ1045
MPNZB4BZ1045
Active
2NC CONTACT WITH SPRING CLAMP AND FIXING COLLA|2NC CONTACT WITH SPRING CLAMP AND FIXING COLLA
$8.38Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Head type | Standard |
| Range of product | Harmony XB4 |
| Contact block type | Single |
| Product or component type | Complete body/contact assembly |
| Contacts type and composition | 2 NC |
| Voltage | 300 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ie] rated operational current | 6 A 120 V, AC-15, A300 IEC 60947-5-1 3 A 240 V, AC-15, A300 IEC 60947-5-1 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| IP degree of protection | IP20 IEC 60529 |
| Connections - terminals | Push-in, Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1 |
All specifications
| Parameter | Value |
|---|---|
| Terminals description ISO n°1 | (11-12)NC |
| Shock resistance | 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 25 mm peak to peak (f= 2...10 Hz) conforming to IEC 60068-2-6 |
| CAD overall depth | 1.2 in (30 mm) |
| CAD overall width | 1.8 in (46.2 mm) |
| Contacts material | Silver alloy (Ag/Ni) |
| CAD overall height | 1.09 in (27.6 mm) |
| Fixing collar material | Zamak |
| Mechanical durability | 10000000 cycles |
| Standards | IEC 60947-1 IEC 60947-5-1 IEC 60947-5-4 IEC 60947-5-5 UL 60947-1 UL 60947-5-1 UL 60947-5-5 UL 1059 UL 486E CSA C22.2 No 60947-1 CSA C22.2 No 60947-5-1 CSA C22.2 No 158 CSA C22.2 No 65 IACS E10 |
| Category | US10CS222469 |
| Contacts usage | Standard contacts |
| Operating force | 4.5 N NC changing electrical state |
| Operating travel | 0.048 in (1.217 mm) NC changing electrical state) 0.2 in (4.3 mm) total travel) |
| Positive opening | With IEC 60947-5-1 appendix K |
| Contact operation | Slow-break |
| Device short name | ZB4 |
| Device composition | Fixing collar Body |
| Device presentation | Basic sub-assemblies |
| Protective treatment | TH |
| Sale per indivisible quantity | 1 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
ZB4BZ1045
