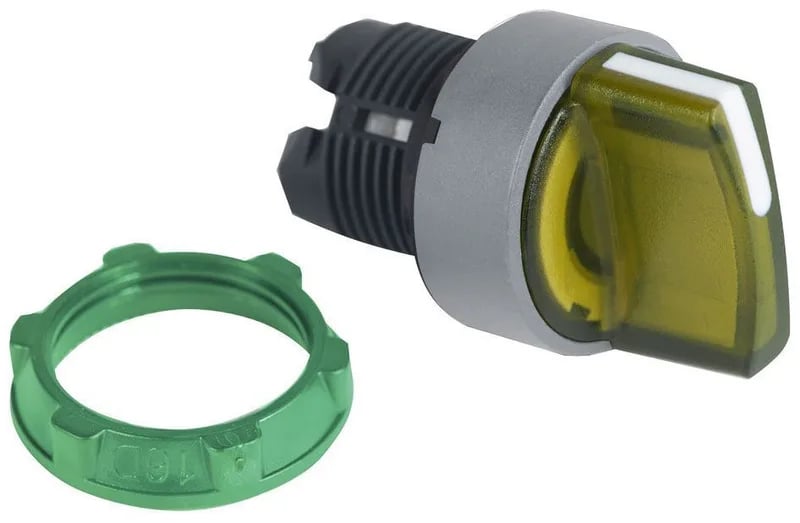

Schneider Electric ZB5AK1283C0
MPNZB5AK1283C0
Active
Square D ZB5AK1283C0 Selector Switch Head|Square D ZB5AK1283C0 Selector Switch Head
$32.69Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony XB5 |
| Type of operator | stay put |
| Product or component type | Head for illuminated selector switch |
| IK degree of protection | IK04 conforming to IEC 50102 |
| IP degree of protection | IP66 IEC 60529 IP67 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Mounting diameter | 0.9 in (22 mm) |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Bezel material | Plastic colour plated grey |
| CAD overall depth | 1.7 in (43 mm) |
| CAD overall width | 1.1 in (29 mm) |
All specifications
| Parameter | Value |
|---|---|
| CAD overall height | 1.1 in (29 mm) |
| Mechanical durability | 1000000 cycles |
| Standards | UL 508 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-5 EN/IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1 |
| Category | US10CS222467 |
| Station name | XALD 1...5 cut-outs XALK 2...5 cut-outs |
| Operator profile | Yellow standard handle |
| Device short name | ZB5 |
| Device presentation | Basic element |
| Overvoltage category | Class II conforming to IEC 60536 |
| Protective treatment | TH |
| Electrical composition code | M3 4 single front mounting integral LED M6 2 single front mounting integral LED and transformer M10 2 single front mounting integral LED MF1 2 single front mounting integral LED MR1 2 single rear mounting integral LED M4 4 single and double front mounting integral LED |
| Shape of signaling unit head | Round |
| Operator position information | 2 positions 90° |
| Sale per indivisible quantity | 1 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
ZB5AK1283C0
