Schneider Electric ZB5AW0G55

Schneider Electric ZB5AW0G55

MPNZB5AW0G55
Obsolete

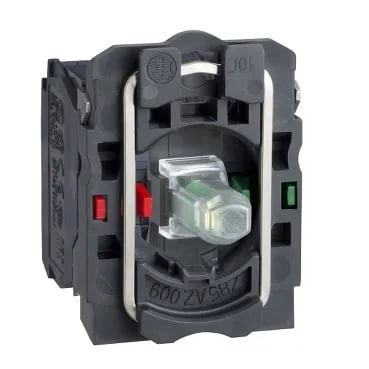

Light block with body fixing collar, XB5, plastic, orange, integral LED, 110...120V AC, 1NO+1NC|Light block with body fixing collar, Harmony XB5, plastic, orange, integral LED, 110...120V AC, 1NO+1NC

Schneider Electric ZB5AW0G55 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ZB5AW0G55 key specifications
ParameterValue
Head typeStandard
Signalling typeSteady
Range of productHarmony XB5
Product or component typeComplete body/contact assembly and light block
Contacts type and composition1 NO + 1 NC
Surge withstand1 kV IEC 61000-4-5
Supply voltage110...120 V AC 50/60 Hz
Voltage600 V 3)EN 60947-1
[Uimp] rated impulse withstand voltage6 kV EN 60947-1
Current consumption14 mA
Short-circuit protection10 A cartridge fuse gG EN/IEC 60947-5-1
[Ie] rated operational current3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

All specifications

ZB5AW0G55 additional specifications
ParameterValue
[Ith] conventional free air thermal current10 A EN/IEC 60947-5-1
Connections - terminalsScrew clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Terminals description ISO n°1(11-12)NC (13-14)NO
Shock resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration resistance5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
Electrical shock protection classClass II conforming to IEC 60536
CAD overall depth1.3 in (32 mm)
CAD overall width1.2 in (30 mm)
Contacts materialSilver alloy (Ag/Ni)
CAD overall height1.7 in (42 mm)
Light source colourOrange
Fixing collar materialPlastic
Electrical durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Mechanical durability5000000 cycles
StandardsJIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 UL 508 EN/IEC 60947-5-4 JIS C8201-1
CategoryUS10CS222469
Bulb baseIntegral LED
Light sourceProtected LED
Service life100000 h at rated voltage and 25 °C
Contacts usageStandard
Operating force2 N NC changing electrical state 2.3 N NO changing electrical state
Operating torque0.44 lbf.in (0.05 N.m) NO changing electrical state
Operating travel0.06 in (1.5 mm) NC changing electrical state) 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel)
Positive openingWith EN/IEC 60947-5-1 appendix K
Contact operationSlow-break
Device short nameZB5
Tightening torque7.08...10.6 lbf.in (0.8...1.2 N.m) EN 60947-1
Light block supplyDirect
Device presentationBasic sub-assemblies
Shape of screw headCross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
Protective treatmentTH
Electrical reliabilityΛ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Electromagnetic emissionClass B IEC 55011
Resistance to fast transients2 kV IEC 61000-4-4
Sale per indivisible quantity1
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Resistance to electromagnetic fields9.1 V/m (10 V/m) IEC 61000-4-3
Ambient air temperature for operation-40...158 °F (-40...70 °C)
Resistance to electrostatic discharge6 kV on contact (on metal parts) IEC 61000-2-6 8 kV in free air (in insulating parts) IEC 61000-2-6
MPN
ZB5AW0G55
