The ZB5AZ103: Single contact block for the Harmony XB5 family. 2 NO slow-break silver-alloy contacts in a complete body/contact assembly — no separate operator head to buy. The plastic fixing collar accepts any standard XB5 actuator. Screw-clamp terminals take 0.22 mm² wire, torqued to 0.8–1.2 N·m. Rated for 3 A at 240 V in AC-15 duty (A600 utilization category), with a conventional free-air thermal current of 10 A. Mechanical durability runs past 10 million cycles, and electrical durability hits 1 million at the rated switching levels. Carries UL 508, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, and JIS C8201-1 approvals. Vibration tested to 5 gn (2–500 Hz), shock rated to 30 gn half sine. Ambient temperature range –40 to 70 °C.
Schneider ZB5AZ103 Harmony XB5 Contact Block, 2 NO, 3 A
MPNZB5AZ103
Active

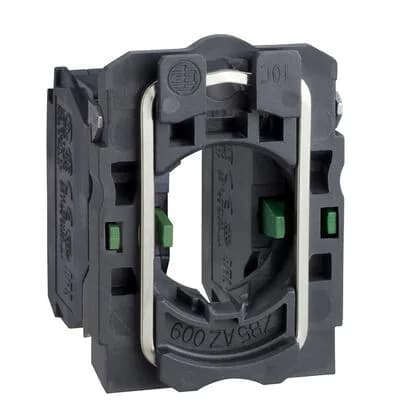

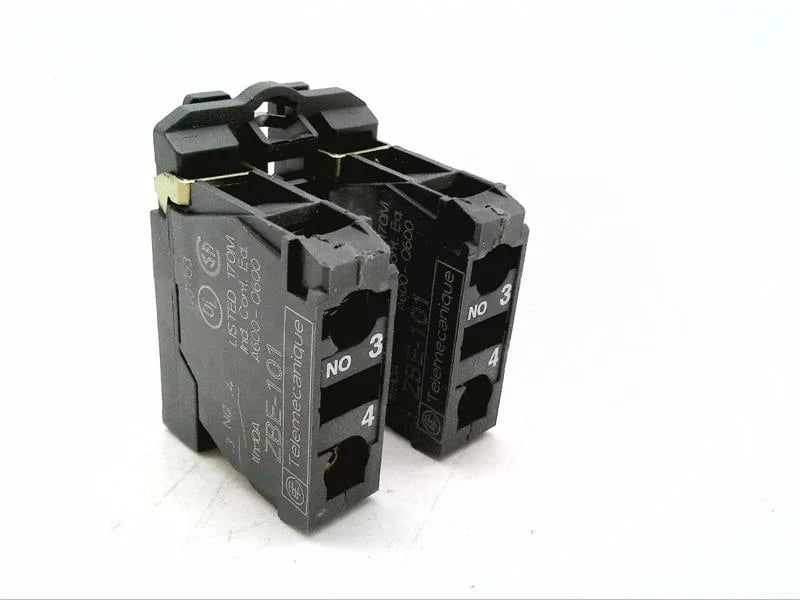

Schneider Harmony XB5 series, ZB5AZ103 complete body/contact assembly, 2 NO contacts, slow-break, silver alloy, screw clamp terminals, rated 3 A at 240 V AC-15.
$5.91Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Head type | Standard |
| Range of product | Harmony XB5 |
| Contact block type | Single |
| Product or component type | Complete body/contact assembly |
| Contacts type and composition | 2 NO |
| Voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| IP degree of protection | IP20 IEC 60529 |
| Connections - terminals | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
All specifications
| Parameter | Value |
|---|---|
| Terminals description ISO n°1 | (13-14)NO |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| CAD overall depth | 1.3 in (32 mm) |
| CAD overall width | 1.2 in (30 mm) |
| Contacts material | Silver alloy (Ag/Ni) |
| CAD overall height | 1.7 in (42 mm) |
| Fixing collar material | Plastic |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Mechanical durability | 10000000 cycles |
| Standards | UL 508 IEC 60947-1 CSA C22.2 No 14 IEC 60947-5-4 IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1 |
| Category | US10CS222469 |
| Contacts usage | Standard contacts |
| Operating travel | 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel) |
| Positive opening | Without |
| Contact operation | Slow-break |
| Device short name | ZB5 |
| Tightening torque | 7.08...10.6 lbf.in (0.8...1.2 N.m) IEC 60947-1 |
| Device composition | Fixing collar Body |
| Device presentation | Basic sub-assemblies |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Protective treatment | TH |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Sale per indivisible quantity | 1 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
Product details
Frequently asked questions
What is the listed category code on this component line?
The ZB5AZ103 is listed under category code US10CS222469.
What is the head type?
The head type is Standard.
What compliance documentation does the brand provide?
The ZB5AZ103 meets UL 508, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, and JIS C8201-1. Documentation for these standards is available from the manufacturer.
