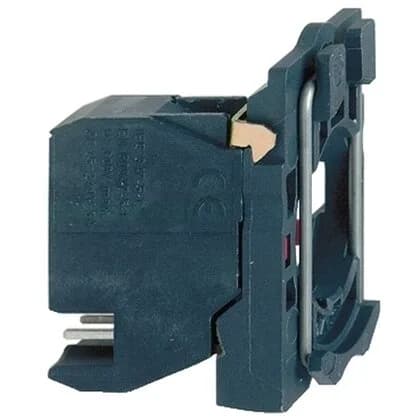

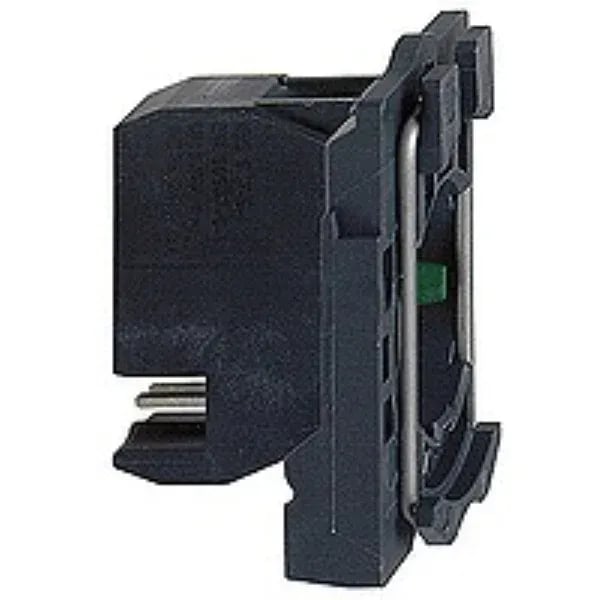

Schneider Electric ZB5AZ1054
MPNZB5AZ1054
Active
CONNECT TERMINAL|CONNECT TERMINAL
$8.38Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Head type | Standard |
| Range of product | Harmony XB5 |
| Contact block type | Single |
| Product or component type | Complete body/contact assembly |
| Contacts type and composition | 1 NO + 1 NC |
| Voltage | 250 V 3)EN 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV EN 60947-1 |
| Short-circuit protection | 4 A cartridge fuse gG EN/IEC 60947-5-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A EN/IEC 60947-5-1 |
| IP degree of protection | IP20 IEC 60529 |
| Connections - terminals | Plug-in connector |
All specifications
| Parameter | Value |
|---|---|
| Terminals description ISO n°1 | (11-12)NC (13-14)NO |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| CAD overall depth | 1.3 in (32 mm) |
| CAD overall width | 1.2 in (30 mm) |
| Contacts material | Silver alloy (Ag/Ni) |
| CAD overall height | 1.7 in (42 mm) |
| Fixing collar material | Plastic |
| Electrical durability | 1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Mechanical durability | 10000000 cycles |
| Standards | EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-4 JIS C8201-5-1 EN/IEC 60947-5-1 JIS C8201-1 |
| Category | 22469-PUSHBUTTON,22MM ACCESSORIES-NEW |
| Contacts usage | Standard contacts |
| Operating travel | 0.06 in (1.5 mm) NC changing electrical state) 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel) |
| Positive opening | With EN/IEC 60947-5-1 appendix K |
| Contact operation | Slow-break |
| Device short name | ZB5 |
| Device composition | Fixing collar Body |
| Protective treatment | TH |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4 |
| Sale per indivisible quantity | 1 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
ZB5AZ1054
