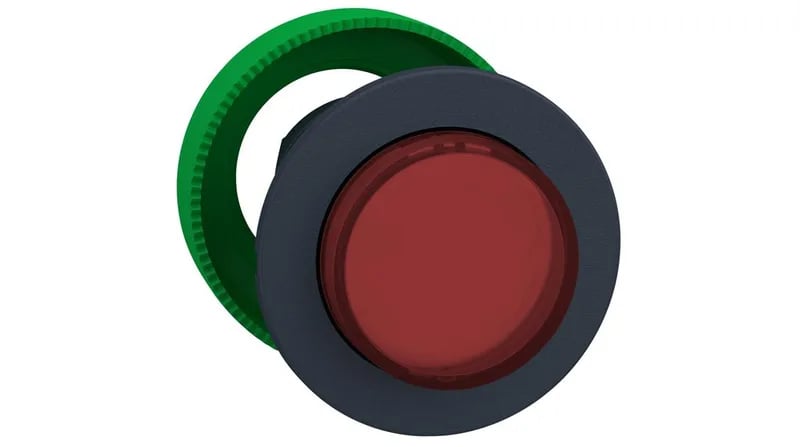

Schneider Electric ZB5FH43
MPNZB5FH43
Active
Illuminated Pushbutton Front Element Latching Function Raised Red IP66 / IP67 / IP69 / IP69K Harmony XB5
$29.66Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Head type | Built-in-flush |
| Range of product | Harmony XB5 |
| Type of operator | push-push |
| Product or component type | Head for illuminated push-button |
| IK degree of protection | IK03 conforming to IEC 50102 |
| IP degree of protection | IP66 IEC 60529 IP67 IEC 60529 IP69 IEC 60529 IP69K ISO 20653 Type 13 UL 50 E Type 12 UL 50 E Type 4 UL 50 E Type 4X UL 50 E |
| Mounting diameter | 1.2 in (30.5 mm) |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 2 mm peak to peak (f= 2...10 Hz) conforming to IEC 60068-2-6 |
| Bezel material | Dark grey plastic |
| CAD overall depth | 1.3 in (32 mm) |
| CAD overall width | 1.5 in (37 mm) |
All specifications
| Parameter | Value |
|---|---|
| CAD overall height | 1.5 in (37 mm) |
| Mechanical durability | 500000 cycles |
| Standards | UL 508 IEC 60947-5-4 IEC 60947-1 JIS C8201-5-1 IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1 |
| Operator profile | Red projecting, unmarked |
| Device short name | ZB5F |
| Overvoltage category | Class II conforming to IEC 60536 |
| Protective treatment | TH |
| Electrical composition code | C11 3 single front mounting C15 1 single front mounting SF1 3 single front mounting C9 3 single front mounting |
| Shape of signaling unit head | Round |
| Sale per indivisible quantity | 1 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
ZB5FH43
