Schneider Electric ZB6E1B
MPNZB6E1B
Active

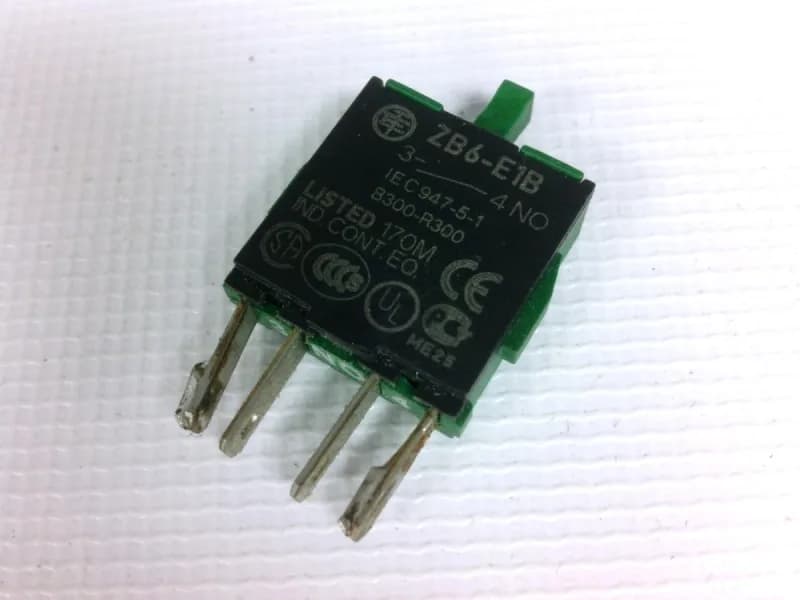

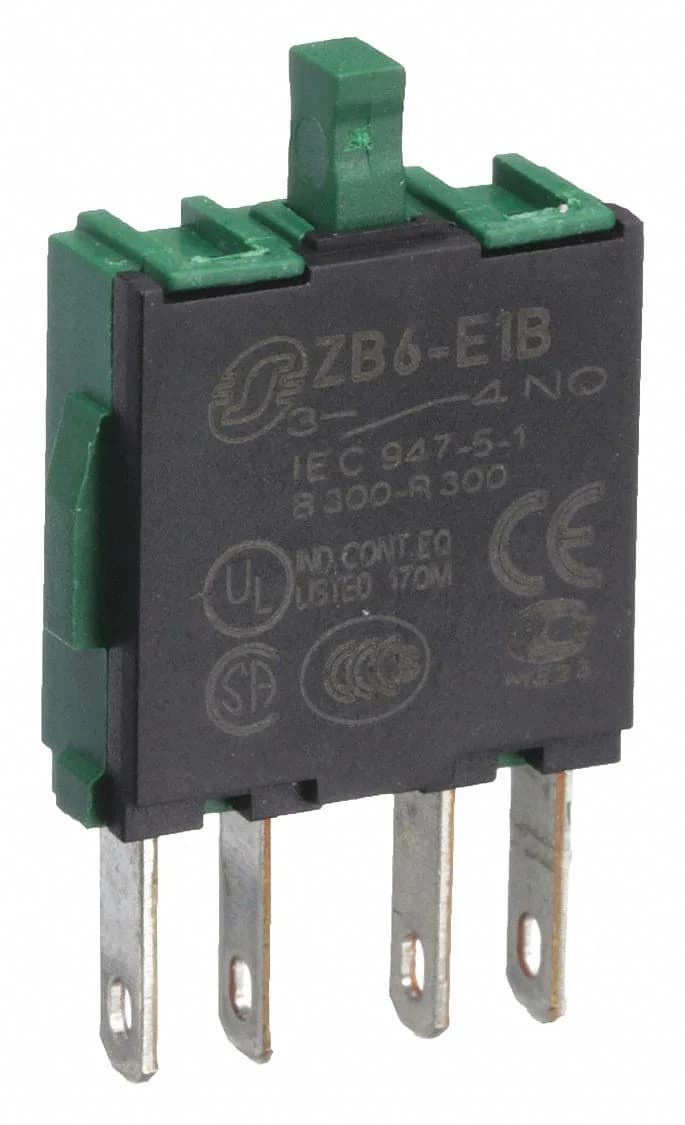

Contact block, Harmony XB6, single contact, for head 16mm, silver alloy, faston connector, 1NO|Contact block, Harmony XB6, single contact, for head 16mm, silver alloy, faston connector, 1NO
$2.21 – $8.76Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony XB6 |
| Contact block type | Single |
| Product or component type | Contact block |
| Contacts type and composition | 1 NO |
| Voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| Short-circuit protection | 6 A cartridge fuse gG |
| [Ie] rated operational current | 3 A 120 V, AC-15, B300 1.5 A 240 V, AC-15, B300 0.1 A 250 V, DC-13, R300 0.22 A 125 V, DC-13, R300 |
| IP degree of protection | IP20 IEC 60529 |
| Connections - terminals | Faston connector |
| Terminals description ISO n°1 | (3-4)NO |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
All specifications
| Parameter | Value |
|---|---|
| Vibration resistance | +/- 3 mm (f= 2...500 Hz) conforming to IEC 60068-2-6 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Contacts material | Silver alloy (Ag/Ni) |
| Electrical durability | 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Mechanical durability | 5000000 cycles |
| Standards | JIS C 4520 IEC 60947-5-1 CSA C22.2 No 14 JIS C 852 IEC 60947-1 IEC 60947-5-4 UL 508 |
| Category | US10CS222459 |
| Operating force | 1.6 N NO changing electrical state |
| Operating travel | 0.08 in (2 mm) NO changing electrical state) 0.1 in (3.5 mm) total travel) |
| Positive opening | With IEC 60947-5-1 appendix K |
| Contact operation | Slow-break |
| Device short name | ZB6 |
| Protective treatment | TC |
| Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
| Sale per indivisible quantity | 10 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
ZB6E1B
