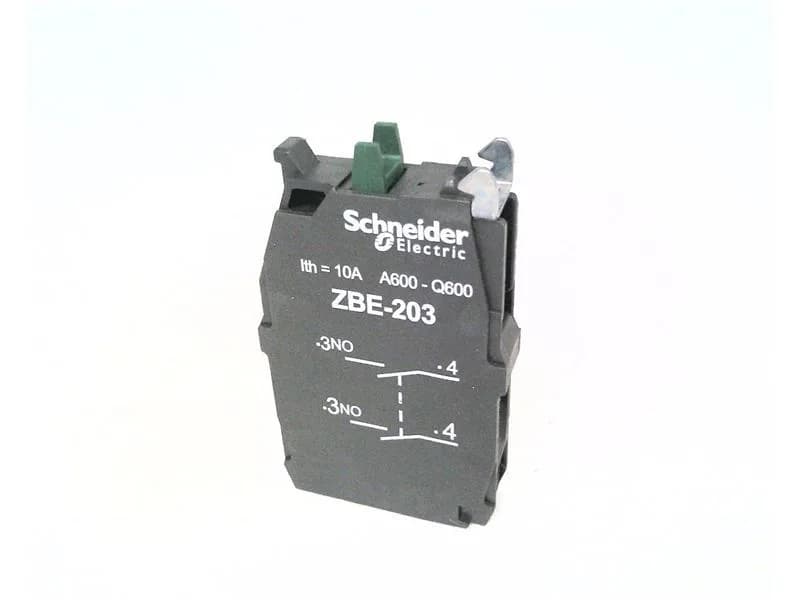

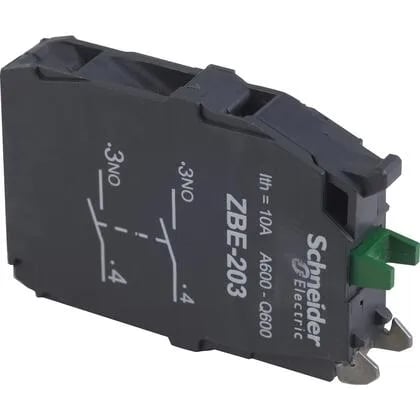

Schneider Electric ZBE203

ZBE203 Contact Block 2NO 600V 10A Schneider

MPNZBE203
Active

Contact Block, Double, Harmony XB4, Silver Alloy, Screw Clamp Terminal, 2NO|Contact Block, Double, Harmony XB4, Silver Alloy, Screw Clamp Terminal, 2 Normally Open

$4.61Ref. price · indicative, final on quote
Schneider Electric ZBE203 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ZBE203 key specifications
ParameterValue
Range of productHarmony XB5 Harmony XB4
Contact block typeDouble
Product or component typeContact block
Contacts type and composition2 NO
Voltage600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage6 kV IEC 60947-1
Short-circuit protection10 A cartridge fuse gG IEC 60947-5-1
[Ie] rated operational current3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
[Ith] conventional free air thermal current10 A IEC 60947-5-1
IP degree of protectionIP20 IEC 60529
Mounting of blockFront mounting
Connections - terminalsScrew clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

All specifications

ZBE203 additional specifications
ParameterValue
Shock resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration resistance5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
Contacts materialSilver alloy (Ag/Ni)
Electrical durability1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Mechanical durability10000000 cycles
StandardsCSA C22.2 No 14 IEC 60947-1 IEC 60947-5-4 IEC 60947-5-1 JIS C8201-5-1 UL 508 JIS C8201-1
CategoryUS10CS222469
Contacts usageStandard contacts
Operating force5 N NO changing electrical state
Operating travel0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel)
Positive openingWithout
Contact operationSlow-break
Device short nameZBE
Tightening torque7.08...10.6 lbf.in (0.8...1.2 N.m) IEC 60947-1
Device presentationBasic element
Shape of screw headCross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm
Protective treatmentTH
Electrical composition codeC2 3) C4 2) C6 2) C8 1) C10 2) C13 3) M2 2) M4 2) M8 2)
Sale per indivisible quantity5
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation-40...158 °F (-40...70 °C)

Product details

Contact ratings and form

The ZBE203 from Schneider provides two normally open contacts rated 10 A continuous, with AC ratings from 1.2 A at 600 V down to 6 A at 120 V, and DC ratings from 0.1 A at 600 V up to 0.55 A at 125 V.

Terminal and mounting

Screw clamp terminals accept wiring for front mounting in a standard 22 mm panel hole; the block itself measures 22.5 mm across.

Approvals and lifecycle

UL and CSA approved, with an active lifecycle status — no end-of-life concerns for new panel builds.
