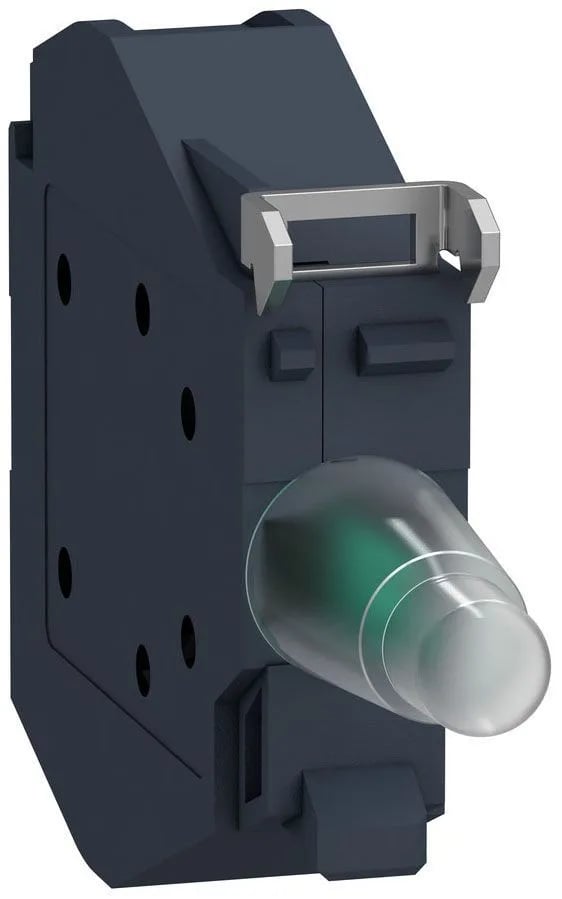

Schneider Electric ZBVBM3GEX
MPNZBVBM3GEX
Active
Square D ZBVBM3GEX LED Lt Block|Square D ZBVBM3GEX LED Lt Block
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Signalling type | Steady |
| Range of product | Harmony XB4 |
| Product or component type | Light block |
| Supply voltage | 24...254 V AC/DC |
| Current consumption | 2...10 mA |
| IP degree of protection | IP65 IEC 60529 |
| Mounting of block | Front mounted |
| Connections - terminals | Screw clamp terminals, 2 x 1.5 mm² without cable end IEC 60947-1 Screw clamp terminals, 1 x 2.5 mm² with cable end IEC 60947-1 |
| CAD overall depth | 2.3 in (58.8 mm) |
| CAD overall width | 1.5 in (38 mm) |
| CAD overall height | 0.4 in (10 mm) |
| Light source colour | Green |
All specifications
| Parameter | Value |
|---|---|
| Standards | IEC 60079-31 ANSI/ISA 12.12.01 UL 60079-31 EN/IEC 60079-18 IEC 60079-0 IEC 60079-7 UL 60079-18 UL 60079-0 CSA C22.2 No 213 |
| Marking | Ex eb mb IIC Gb |
| Category | US10CS222465 |
| Bulb base | Integral LED |
| Light source | LED |
| Service life | 100000 h at ambiant temperature |
| Device short name | ZBV |
| Tightening torque | 7.08...10.6 lbf.in (0.8...1.2 N.m) IEC 60947-1 |
| Light block supply | Direct |
| Protective treatment | TH |
| Environmental characteristic | Hazardous location class I division 2 |
| Sale per indivisible quantity | 1 |
| Ambient air temperature for storage | -58...158 °F (-50...70 °C) |
| Ambient air temperature for operation | -58...203 °F (-50...95 °C) |
MPN
ZBVBM3GEX
