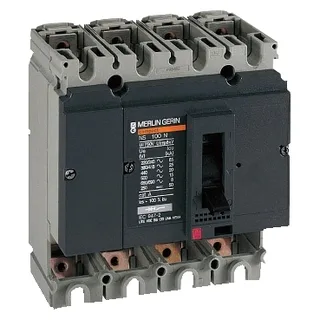

29011
Schneider Electric
IP4085 °C-50 °C
Lead time on requestGet quote
Schneider Electric 2901 Series
4 variants · Schneider Electric
About the Schneider Electric 2901 Series
The Schneider Electric 2901 Series series groups 4 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common connection surface bottom of Front, connection surface top of Front and control type of Toggle. Variants differ by mechanical life cycles and width, so you can match the exact mechanical life cycles your application requires using the selection guide below.
Select a variant by
- Mechanical life cycles
- 10000 cycles conforming to IEC 60947-2 · 50000 cycles conforming to IEC 60947-2
- Width
- 105 mm · 140 mm
Shared specifications
- Connection surface bottom
- Front
- Connection surface top
- Front
- Control type
- Toggle
- Depth
- 86 mm
- Height
- 161 mm
- IP rating
- IP40
- Main product or component type
- Basic frame
- Operating temperature
- -25...70 °C
- Pollution degree
- 3 conforming to IEC 60947
- Protection type
- Without protection
- Storage temperature
- -50...85 °C
- Temp operating max
- 70 °C
Variant comparison
| Parameter | 29011 | 29016 | 29017 |
|---|---|---|---|
| Mechanical life cycles | 50000 cycles conforming to IEC 60947-2 | 10000 cycles conforming to IEC 60947-2 | 10000 cycles conforming to IEC 60947-2 |
| Width | 140 mm | 105 mm | 140 mm |
Request a quote on any Schneider Electric 2901 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
