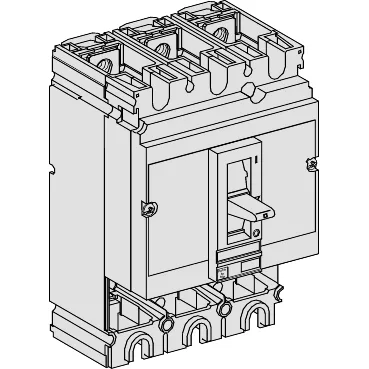

circuit breaker Compact NS100 DC - 100 A - 4 poles - fixed - without trip unit

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

29017 — Identification
Parameter	Value
Product range (series)	Compact NS100...630
Product/component type	Basic frame

29017 — Ratings
Parameter	Value
Rated current (In)	100 A at 40 °C
Poles configuration	4P
Breaking capacity	100 kA Icu at 250 V DC 1P conforming to IEC 60947-2 100 kA Icu at 48/125 V DC 1P conforming to IEC 60947-2 100 kA Icu at 500 V DC 2P conforming to IEC 60947-2 100 kA Icu at 750 V DC 3P conforming to IEC 60947-2
Rated service breaking capacity (Ics)	100 kA at 250 V DC conforming to IEC 60947-2 (1P) 100 kA at 48/125 V DC conforming to IEC 60947-2 (1P) 100 kA at 500 V DC conforming to IEC 60947-2 (2P) 100 kA at 750 V DC conforming to IEC 60947-2 (3P)
Rated operational voltage (Ue)	750 V DC conforming to IEC 60947-2
Rated insulation voltage (Ui)	800 V DC conforming to IEC 60947-2
Rated impulse withstand voltage (Uimp)	8 kV conforming to IEC 60947-2
Network type (AC/DC)	DC
Utilisation category	Category A

29017 — Protection
Parameter	Value
Suitability for isolation	Yes conforming to IEC 60947-2
Electrical durability (cycles)	10000 cycles 250 V DC In/2 conforming to IEC 60947-2 10000 cycles 500 V DC In/2 conforming to IEC 60947-2 10000 cycles 750 V DC In/2 conforming to IEC 60947-2 5000 cycles 250 V DC In conforming to IEC 60947-2 5000 cycles 500 V DC In conforming to IEC 60947-2 5000 cycles 750 V DC In conforming to IEC 60947-2
Mechanical durability (cycles)	10000 cycles conforming to IEC 60947-2

29017 — Environmental
Parameter	Value
Operating ambient temperature	-25...70 °C
Storage ambient temperature	-50...85 °C
IP degree of protection	IP40 conforming to IEC 60529
Pollution degree	3 conforming to IEC 60947
