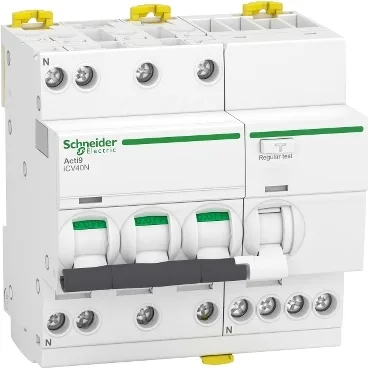

A9DC3710
Schneider Electric
WhiteDistribution85 °C
Ref. price$113.13 – $237.71
Lead time on requestGet quote
Schneider Electric A9DC Series
26 variants · Schneider Electric
About the Schneider Electric A9DC Series
The Schneider Electric A9DC Series series groups 26 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Distribution, color of White and control type of Toggle. Variants differ by breaking capacity, electrical life cycles and height, so you can match the exact breaking capacity your application requires using the selection guide below.
Select a variant by
- Breaking capacity
- 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 · 10000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
- Electrical life cycles
- 10000 cycles · 20000 cycles
- Height
- 85 mm · 93 mm
- Width
- 36 mm · 90 mm
Shared specifications
- Application
- Distribution
- Color
- White
- Control type
- Toggle
- Depth
- 73 mm
- Mechanical life cycles
- 20000 cycles
- Operating temperature
- -25...60 °C
- Pollution degree
- 3
- Storage temperature
- -40...85 °C
- Temp operating max
- 60 °C
- Temp operating min
- -25 °C
- Temp storage max
- 85 °C
- Temp storage min
- -40 °C
Variant comparison
| Parameter | A9DC4606 | A9DC4620 | A9DC4632 | A9DC3740 | A9DC3710 | A9DC3716 |
|---|---|---|---|---|---|---|
| Breaking capacity | 10000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 | 10000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 | 10000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 | 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 | 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 | 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 |
| Electrical life cycles | 20000 cycles | 20000 cycles | 10000 cycles | 10000 cycles | 20000 cycles | 20000 cycles |
| Height | 85 mm | 85 mm | 85 mm | 93 mm | 93 mm | 93 mm |
| Width | 36 mm | 36 mm | 36 mm | 90 mm | 90 mm | 90 mm |
Request a quote on any Schneider Electric A9DC Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
