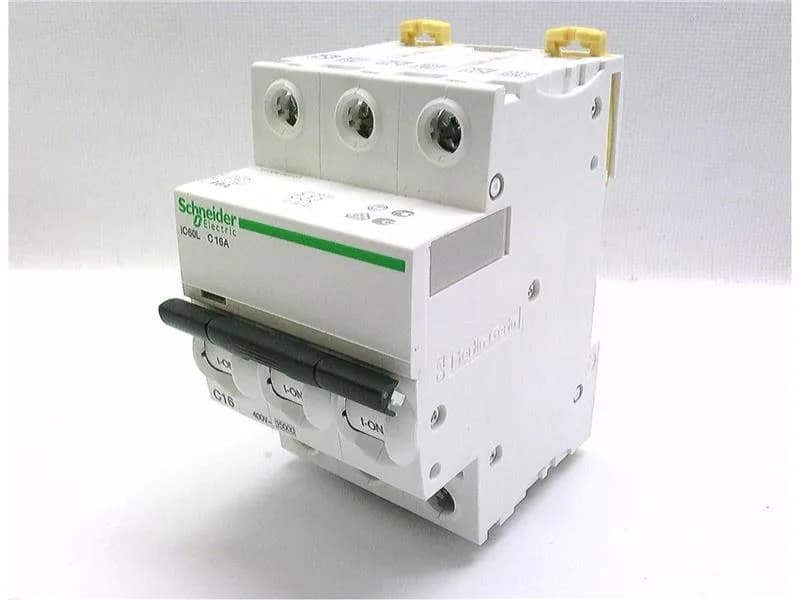

A9F94116
Schneider Electric
DistributionWhite85 °C
Ref. price$30.87 – $52.13
Lead time on requestGet quote
Schneider Electric A9F9 Series
250 variants · Schneider Electric
About the Schneider Electric A9F9 Series
The Schneider Electric A9F9 Series series groups 250 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common color of White, control type of Toggle and depth of 78.5 mm. Variants differ by application, trip unit type and width, so you can match the exact application your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric A9F9 Series variants and discontinued ones from a single page.
Select a variant by
- Application
- Distribution · Motor
- Trip unit type
- Magnetic · Thermal-magnetic
- Width
- 36 mm · 54 mm
Shared specifications
- Color
- White
- Control type
- Toggle
- Depth
- 78.5 mm
- Electrical life cycles
- 10000 cycles
- Height
- 85 mm
- Main product or component type
- Miniature circuit-breaker
- Mechanical life cycles
- 20000 cycles
- Operating temperature
- -35...70 °C
- Pollution degree
- 3 conforming to EN/IEC 60947-2
- Storage temperature
- -40...85 °C
- Temp operating max
- 70 °C
- Temp operating min
- -35 °C
Variant comparison
| Parameter | A9F94210 | A9F90204 | A9F90210 | A9F90216 | A9F90225 | A9F90240 |
|---|---|---|---|---|---|---|
| Application | Distribution | Motor | Motor | Motor | Motor | Motor |
| Trip unit type | Thermal-magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
| Width | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
Request a quote on any Schneider Electric A9F9 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
