Schneider Electric BMXC Series

2 variants · Schneider Electric

About the Schneider Electric BMXC Series

AO Ctrl is a China industrial automation distributor and independent sourcing agent for Schneider Electric BMXC Series components — the parts repair and maintenance teams source here when a machine is down or the line is no longer sold locally — with the physical condition of every unit stated up front. The Schneider Electric BMXC Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common application of X80 Ethernet RIO drop adaptor, connector type of 3 RJ45 and current of 1200 mA. Variants differ by main product or component type, operating temperature and temp operating min, so you can match the exact main product or component type your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric BMXC Series variants and discontinued ones from a single page.

Select a variant by

Main product or component type: Ethernet I/O head module · I/O expansion module
Operating temperature: -25...60 °C · 0...60 °C
Temp operating min: -25 °C · 0 °C

Shared specifications

Application: X80 Ethernet RIO drop adaptor
Connector type: 3 RJ45
Current: 1200 mA
Depth: 87.5 mm
Fixing mode: Screws
Height: 100 mm
Input voltage: 3.3 V DC
IP rating: IP20
Module format: Standard
Storage temperature: -40...85 °C
Temp operating max: 60 °C
Temp storage max: 85 °C

Variant comparison

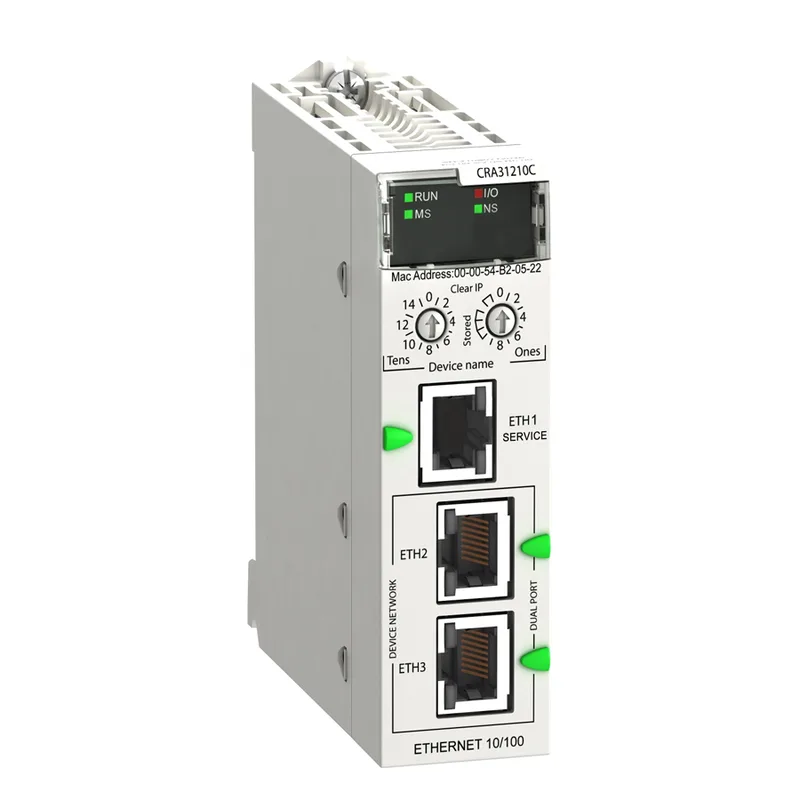

Parameter	BMXCRA31210	BMXCRA31210C
Main product or component type	I/O expansion module	Ethernet I/O head module
Operating temperature	0...60 °C	-25...60 °C
Temp operating min	0 °C	-25 °C

Request a quote on any Schneider Electric BMXC Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
