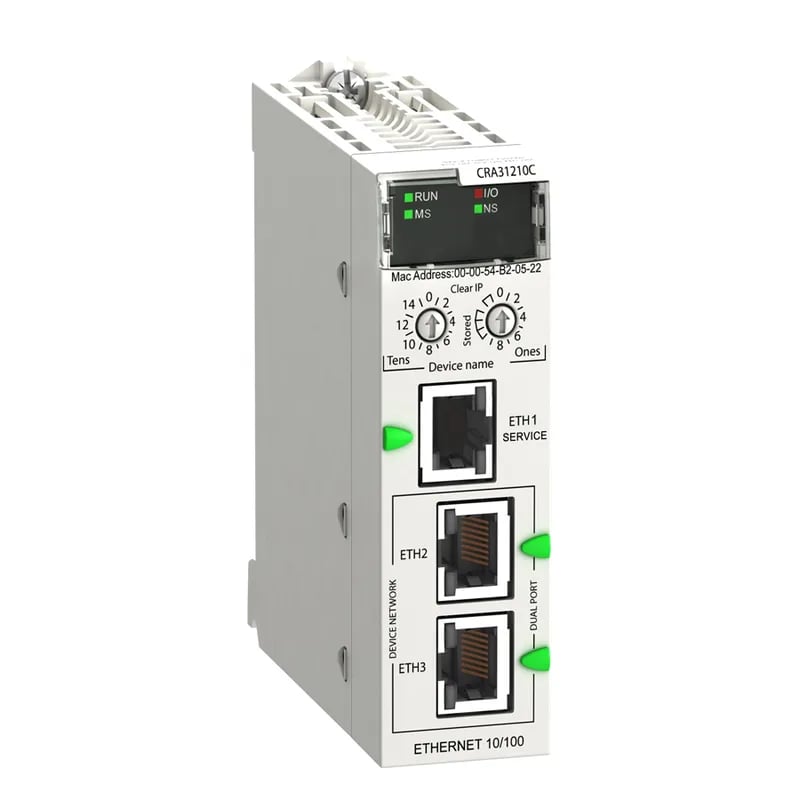

Schneider BMXCRA31210C Ethernet RIO Adapter
MPNBMXCRA31210C
Active
Square D BMXCRA31210C M340 Rio Drop E/Ip|Square D BMXCRA31210C M340 Rio Drop E/Ip
$1,941.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protocol | Bus X across the remote backplane |
| Connector type | 3 RJ45 |
| Range of product | Modicon X80 |
| Product or component type | Ethernet I/O head module |
| Communication network type | IPv4 (internet protocol) |
| Integrated connection type | 1 port for service or distributed equipment 2 port for Ethernet RIO Network (RSTP) |
| Input voltage | 3.3 V DC |
| Current consumption | 1200 mA |
| IP degree of protection | IP20 |
| Communication service | Ethernet/IP adapter RSTP (Ring topology support) Ethernet RIO network Quality of Service (QoS) CIP Explicit messaging (server) Modbus TCP server for module diagnostics DHCP client TFTP client FTP client FDR client SNTP client SNMP agent |
| Communication port protocol | EtherNet/IP |
| Mounting mode | Rack-mounted |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 2000 m |
| Maximum altitude transport | 3000 m |
| Depth | 87.5 mm |
| Width | 32 mm |
| Height | 100 mm |
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0 UL 121201 CSA C22.2 No 213 |
| Topology | Ring |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive |
| Fixing mode | By screws |
| Cybersecurity | Enable/disable communication ports Syslog protocol support |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Module format | Standard |
| Port ethernet | 10/100BASE-TX |
| Data recording | 10 ms time stamps |
| Number of port | 3 |
| Local signalling | 1 LED (green) for module active (RUN) 1 LED (red) for module error (ERR) 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) 1 LED (green) for Ethernet link diagnostics (STS) |
| Transmission rate | 10/100 Mbit/s |
| Device application | X80 Ethernet RIO drop adaptor |
| Function available | CCOTF (configuration change on the fly) Input data is collected and published to the remote I/O head adaptor Output modules are updated with the data received from remote I/O head adaptor Diagnostics for remote I/O devices (Device DDT) Port mirroring System time stamping Non-interfering type 1 I/O extension rack |
| Protective treatment | Conformal coating |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
| Product specific application | For remote I/O modules |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -25...60 °C |
MPN
BMXCRA31210C
