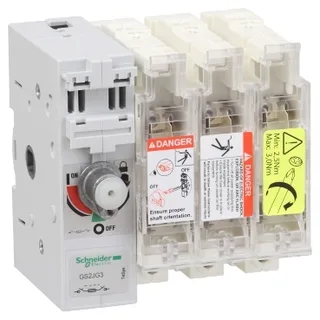

About the Schneider Electric GS2J Series

The Schneider Electric GS2J Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common main product or component type of Switch-disconnector-fuse, mechanical life cycles of 10000 cycles and temp operating max of 70 °C. Variants differ by depth, electrical life cycles and fuse type, so you can match the exact depth your application requires using the selection guide below.

Select a variant by

Depth: 4.8 in (122.2 mm) · 116 mm
Electrical life cycles: 1500 cycles AC-23 A 1500 cycles AC-23B 300 cycles AC-23 A 300 cycles AC-23B · 6000 cycles
Fuse type: NFC · UL
Height: 7.3 in (186 mm) · 162 mm
Operating temperature: -20...70 °C · -4...158 °F (-20...70 °C)
Storage temperature: -40...80 °C · -40...176 °F (-40...80 °C)
Width: 5.9 in (149.3 mm) · 184 mm

Shared specifications

Main product or component type: Switch-disconnector-fuse
Mechanical life cycles: 10000 cycles
Temp operating max: 70 °C
Temp operating min: -20 °C
Temp storage max: 80 °C
Temp storage min: -40 °C

Variant comparison

Parameter	GS2J4	GS2JU3
Depth	116 mm	4.8 in (122.2 mm)
Electrical life cycles	1500 cycles AC-23 A 1500 cycles AC-23B 300 cycles AC-23 A 300 cycles AC-23B	6000 cycles
Fuse type	NFC	UL
Height	162 mm	7.3 in (186 mm)
Operating temperature	-20...70 °C	-4...158 °F (-20...70 °C)
Storage temperature	-40...80 °C	-40...176 °F (-40...80 °C)
Width	184 mm	5.9 in (149.3 mm)

Request a quote on any Schneider Electric GS2J Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
