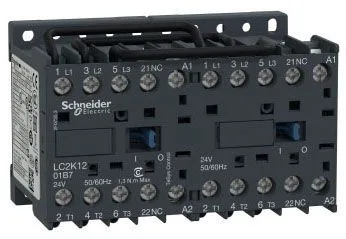

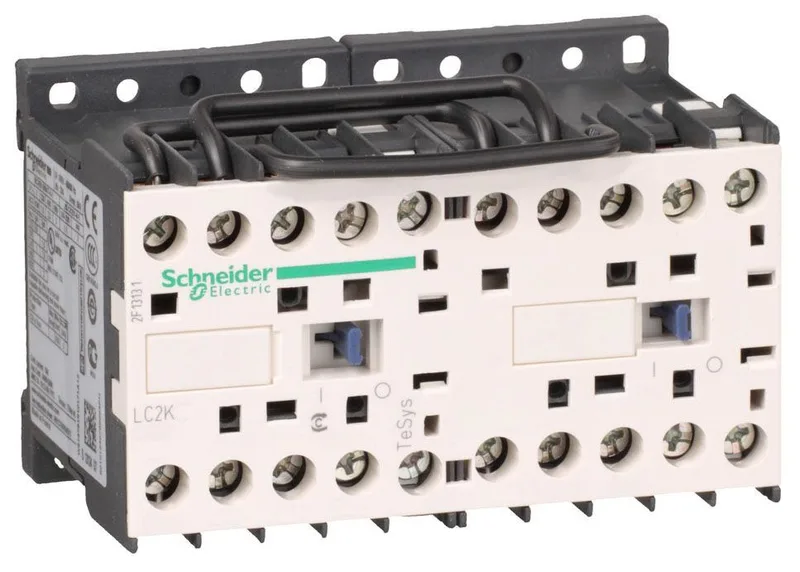

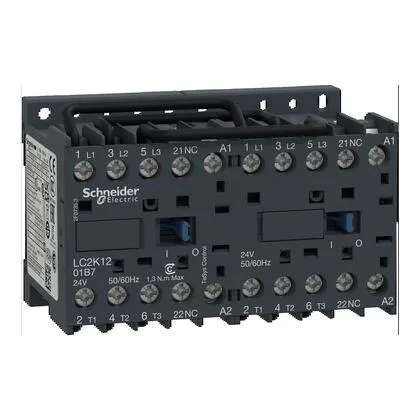

LC2K1201E7
Schneider Electric
IP20Resistive load Motor control80 °C
Ref. price$204.00
Lead time on requestGet quote
Schneider Electric LC2K1201 Series
55 variants · Schneider Electric
About the Schneider Electric LC2K1201 Series
The Schneider Electric LC2K1201 Series series groups 55 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Resistive load Motor control, depth of 2.2 in (57 mm) and height of 2.3 in (58 mm). Variants differ by utilization category, so you can match the exact utilization category your application requires using the selection guide below.
Select a variant by
- Utilization category
- AC-3 AC-1 AC-4 AC-3e · AC-3 AC-3e AC-4 AC-1
Shared specifications
- Application
- Resistive load Motor control
- Depth
- 2.2 in (57 mm)
- Height
- 2.3 in (58 mm)
- IP rating
- IP20
- Main product or component type
- Reversing contactor
- Operating temperature
- -13...122 °F (-25...50 °C)
- Storage temperature
- -58...176 °F (-50...80 °C)
- Temp operating max
- 50 °C
- Temp operating min
- -25 °C
- Temp storage max
- 80 °C
- Temp storage min
- -50 °C
- Width
- 3.5 in (90 mm)
Variant comparison
| Parameter | LC2K1201E7 | LC2K1201B7 | LC2K1201F7 | LC2K1201G7 |
|---|---|---|---|---|
| Utilization category | AC-3 AC-3e AC-4 AC-1 | AC-3 AC-3e AC-4 AC-1 | AC-3 AC-3e AC-4 AC-1 | AC-3 AC-1 AC-4 AC-3e |
Request a quote on any Schneider Electric LC2K1201 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
