The Square D LC2K1201E7 is a reversing contactor from the TeSys K range, rated 12A in AC-3 duty for motor control, and preassembled with a reversing power busbar to save panel wiring time. Rated operational voltage 690 V AC, utilisation categories AC-3, AC-3e, AC-4, AC-1 cover resistive and motor loads. The 3-pole configuration handles reversing motor starts out of the box. Dimensions are 2.2 in deep, 3.5 in wide, 2.3 in high. IP20 finger-safe enclosure. Preassembled busbar means no separate crossover wiring — a real time-saver when you're swapping a contactor in place.

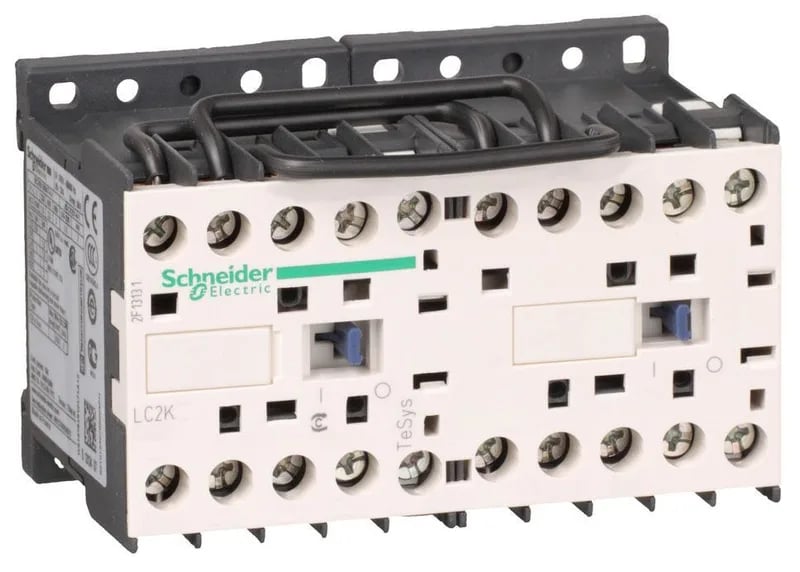

Square D LC2K1201E7 TeSys K Reversing Contactor, 12A, 690V
MPNLC2K1201E7
Active
Square D LC2K1201E7 TeSys K reversing contactor, 3-pole, 12A rated, 690V AC, preassembled with reversing power busbar.
$204.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Reversing contactor |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz Signalling circuit 10 MOhm for signalling circuit |
| Power pole contact composition | 3 NO |
| Poles description | 3P |
| Utilisation category | AC-3 AC-3e AC-4 AC-1 |
| IP degree of protection | IP20 VDE 0106 |
| Operating altitude | 6561.68 ft (2000 m) without derating |
| Depth | 2.2 in (57 mm) |
| Width | 3.5 in (90 mm) |
| Height | 2.3 in (58 mm) |
| Range | TeSys |
| Category | US10I1222327 |
All specifications
| Parameter | Value |
|---|---|
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Device short name | LC2K |
| Device application | Control |
| Device presentation | Preassembled with reversing power busbar |
| Protective treatment | TC IEC 60068 TC DIN 50016 |
| Contactor application | Resistive load Motor control |
| Mechanical robustness | Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 |
| Ambient air temperature for storage | -58...176 °F (-50...80 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
Product details
MPN
LC2K1201E7
