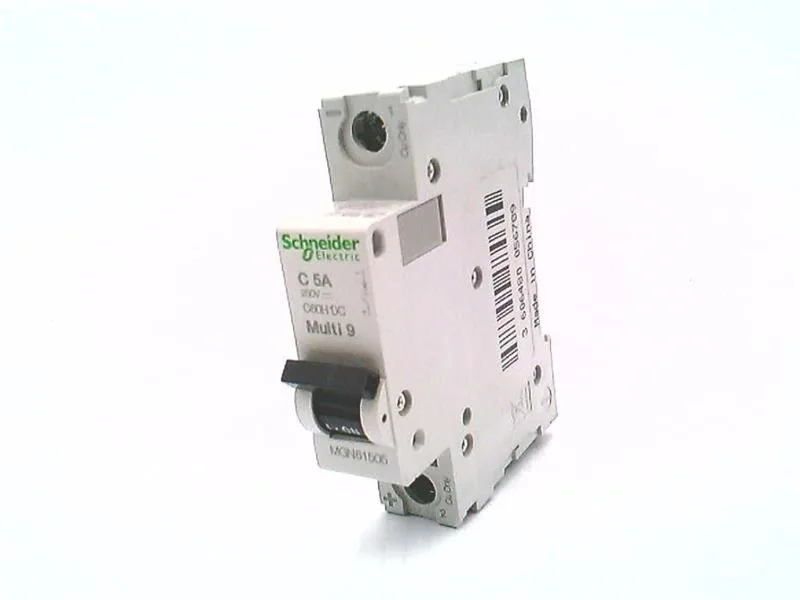

Schneider Electric MGN61 Series

165 variants · Schneider Electric

About the Schneider Electric MGN61 Series

The Schneider Electric MGN61 Series series groups 165 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Distribution, color of Gray and control type of Toggle. Variants differ by width, so you can match the exact width your application requires using the selection guide below.

Select a variant by

Width
0.7 in (18 mm) · 1.4 in (36 mm)

Shared specifications

Application
Distribution
Color
Gray
Control type
Toggle
Depth
2.9 in (73 mm)
Electrical life cycles
3000 cycles L/R = 2 ms
Height
3.2 in (81 mm)
Main product or component type
Miniature circuit-breaker
Mechanical life cycles
20000 cycles
Operating temperature
-13...158 °F (-25...70 °C)
Pollution degree
3 EN/IEC 60947-2
Storage temperature
-40...185 °F (-40...85 °C)
Temp operating max
70 °C

Variant comparison

ParameterMGN61525MGN61505MGN61510
Width1.4 in (36 mm)0.7 in (18 mm)0.7 in (18 mm)

Request a quote on any Schneider Electric MGN61 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
