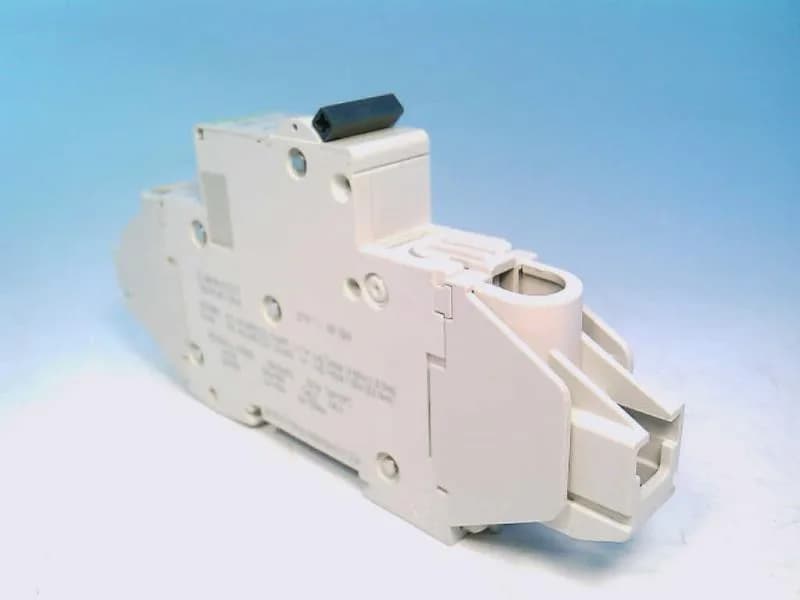

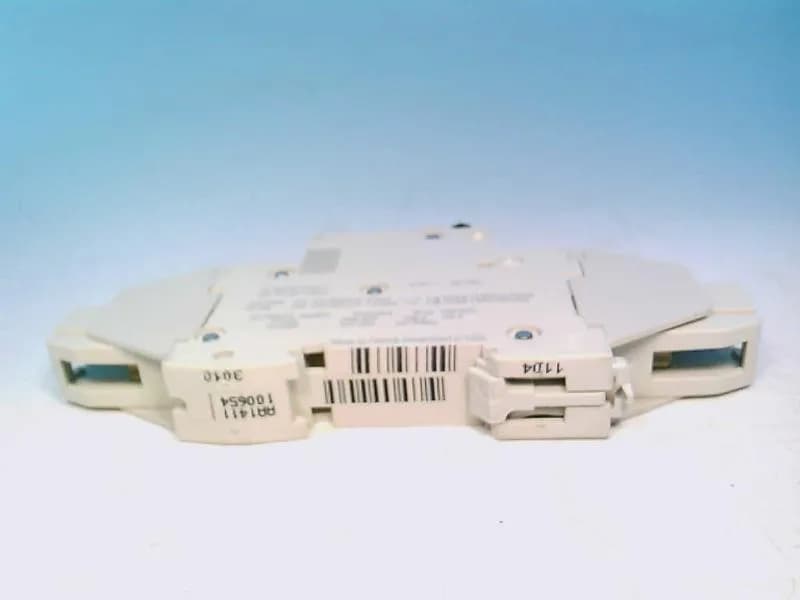

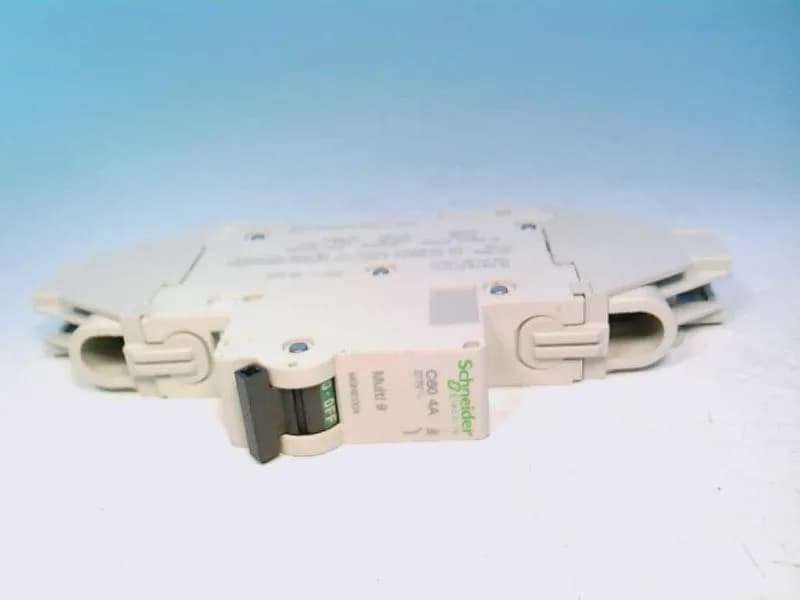

Schneider Electric MGN61304
MPNMGN61304
Obsolete
SQD MGN61304 MINIATURE CIRCUIT|SQD MGN61304 MINIATURE CIRCUIT BREAKER 277V 4A
$116.97Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Miniature circuit-breaker |
| Voltage | 500 V AC EN/IEC 60947-2 |
| [Ue] rated operational voltage | 277 V AC |
| [Uimp] rated impulse withstand voltage | 6 kVEN/IEC 60947-2 |
| Breaking capacity | 10 kA AIR 277 V AC UL 489 10 kA AIR 277 V AC CSA C22.2 No 5.2 10 kA Icu 277 V AC EN/IEC 60947-2 10 kA Icu 277 V AC GB 14048.2 |
| Line rated current | 4 A 77 °F (25 °C) |
| Network frequency | 50/60 Hz |
| Poles description | 1P |
| Number of protected poles | 1 |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
All specifications
| Parameter | Value |
|---|---|
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Connections - terminals | Tunnel type terminal top or bottom) - 1 0.002...0.002 in² (1...1.5 mm²) AWG 18...AWG 16) - rigid Tunnel type terminal top or bottom) - 2 0.002...0.002 in² (1...1.5 mm²) AWG 18...AWG 16) - rigid |
| Pollution degree | 3 EN/IEC 60947-2 |
| Relative humidity | 95 % 131 °F (55 °C) |
| Operating altitude | 6561.68 ft (2000 m) |
| Color | Gray |
| Depth | 2.7 in (68.7 mm) |
| Width | 0.7 in (18 mm) |
| Height | 5.6 in (141 mm) |
| Electrical durability | 10000 cycles |
| Mechanical durability | 20000 cycles |
| Standards | GB 14048.2 EN/IEC 60947-2 UL 489 CSA C22.2 No 5 |
| Range | Multi9 |
| Category | 00915-C60N MINIATURE CIRCUIT BREAKER-UL489 |
| Curve code | C |
| 9 mm pitches | 2 |
| Tropicalisation | 2 IEC 60068-1 |
| Limitation class | 3 EN/IEC 60947-2 |
| Local signalling | ON/OFF indication |
| Device short name | C60 UL489 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) top or bottom |
| Device application | Distribution |
| Overvoltage category | IV |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 8.5 x In +/- 20 % AC |
| Provision for padlocking | Padlockable |
| Suitability for isolation | Yes EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Ambient air temperature for operation | -22...158 °F (-30...70 °C) |
MPN
MGN61304
