Schneider Electric TM5C Series

2 variants · Schneider Electric

About the Schneider Electric TM5C Series

AO Ctrl is a China industrial automation distributor and independent sourcing agent for Schneider Electric TM5C Series components — the parts repair and maintenance teams source here when a machine is down or the line is no longer sold locally — with the physical condition of every unit stated up front. The Schneider Electric TM5C Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common depth of 3.0 in (75 mm), height of 3.9 in (99 mm) and IP rating of IP20. Variants differ by color, main product or component type and operating temperature, so you can match the exact color your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric TM5C Series variants and discontinued ones from a single page.

Select a variant by

Color: Red · White
Main product or component type: Compact I/O expansion block · Controller system
Operating temperature: 14...122 °F (-10...50 °C) vertical installation) 14...140 °F (-10...60 °C) horizontal installation) · 32...113 °F (0...45 °C) vertical installation) 32...131 °F (0...55 °C) horizontal installation)
Storage temperature: -40...158 °F (-40...70 °C) · -13...158 °F (-25...70 °C)
Temp operating max: 45 °C · 50 °C
Temp operating min: -10 °C · 0 °C
Temp storage min: -40 °C · -25 °C
Width: 0.5 in (12.5 mm) · 3.4 in (87.5 mm)

Shared specifications

Depth: 3.0 in (75 mm)
Height: 3.9 in (99 mm)
IP rating: IP20
Temp storage max: 70 °C

Variant comparison

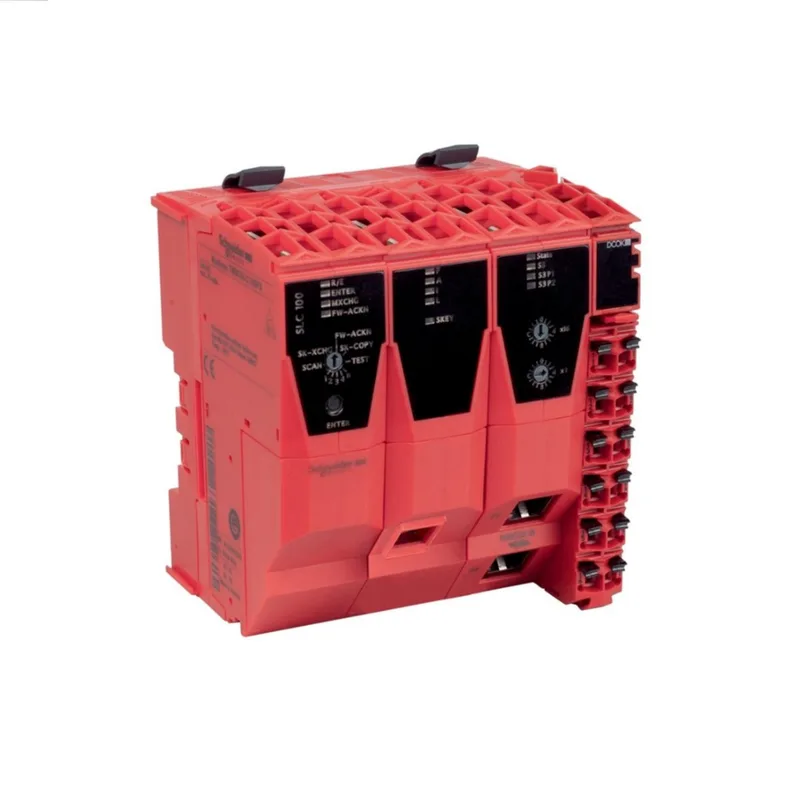

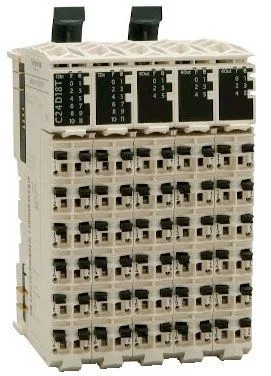

Parameter	TM5CSLC100FS	TM5C12D8T
Color	Red	White
Main product or component type	Controller system	Compact I/O expansion block
Operating temperature	32...113 °F (0...45 °C) vertical installation) 32...131 °F (0...55 °C) horizontal installation)	14...122 °F (-10...50 °C) vertical installation) 14...140 °F (-10...60 °C) horizontal installation)
Storage temperature	-13...158 °F (-25...70 °C)	-40...158 °F (-40...70 °C)
Temp operating max	45 °C	50 °C
Temp operating min	0 °C	-10 °C
Temp storage min	-25 °C	-40 °C
Width	3.4 in (87.5 mm)	0.5 in (12.5 mm)

Request a quote on any Schneider Electric TM5C Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
