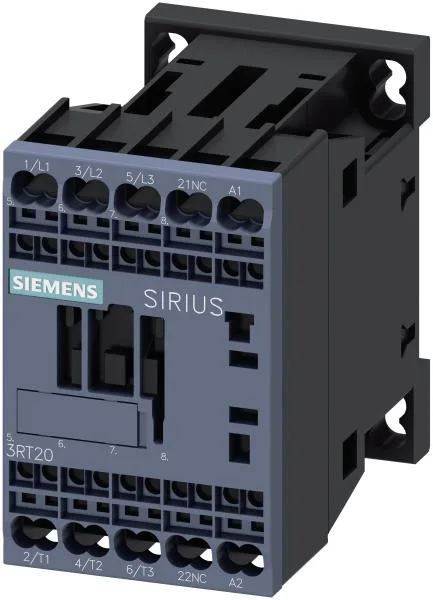

It carries a 24 VDC coil rated at 10 A, with spring-type terminals for fast wiring — no screwdriver torque required on the main and auxiliary circuits. Mounting is screw or snap-on onto 35 mm DIN rail per DIN EN 60715, and the contactor can be rotated ±180° on a vertical surface or tilted ±22.5°, giving panel builders flexibility in tight enclosures.
Spring-type terminals accept solid or stranded wire from 0.5 to 4 mm², or two conductors of the same cross-section (2x 0.5–4 mm²). The contactor includes an integrated auxiliary switch (20–12 rating for main contacts), so you don't need a separate add-on block for basic feedback to a PLC. Depth is 73 mm, width 45 mm, height 70 mm — fits standard DIN-rail spacing without overhang.
