Siemens 3RV2935-5A
MPN3RV2935-5A
Active

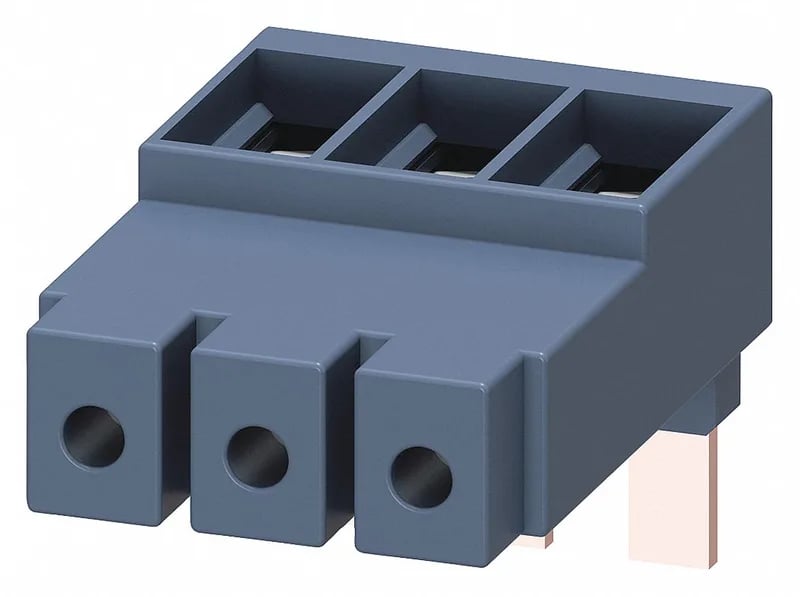

3-phase supply terminal Size S2 for 3-phase busbar connection from top
$11.32Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | SIRIUS |
| Product designation | 3-phase supply terminal |
| Frame size | S2 |
Electrical
| Parameter | Value |
|---|---|
| Rated insulation voltage (Ui), pollution degree 3 | 690 V |
Connections
| Parameter | Value |
|---|---|
| Conductor cross-section, solid / stranded | 2.5 ... 70 mm² |
| Conductor cross-section, finely stranded with ferrule | 2.5 ... 50 mm² |
Mechanical
| Parameter | Value |
|---|---|
| Height | 51 mm |
| Width | 55 mm |
| Depth | 77 mm |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature | -20 ... +60 °C |
| Storage temperature | -50 ... +80 °C |
Specifications
| Parameter | Value |
|---|---|
| Design Of The Product | from above, size S2 |
MPN
3RV2935-5A
