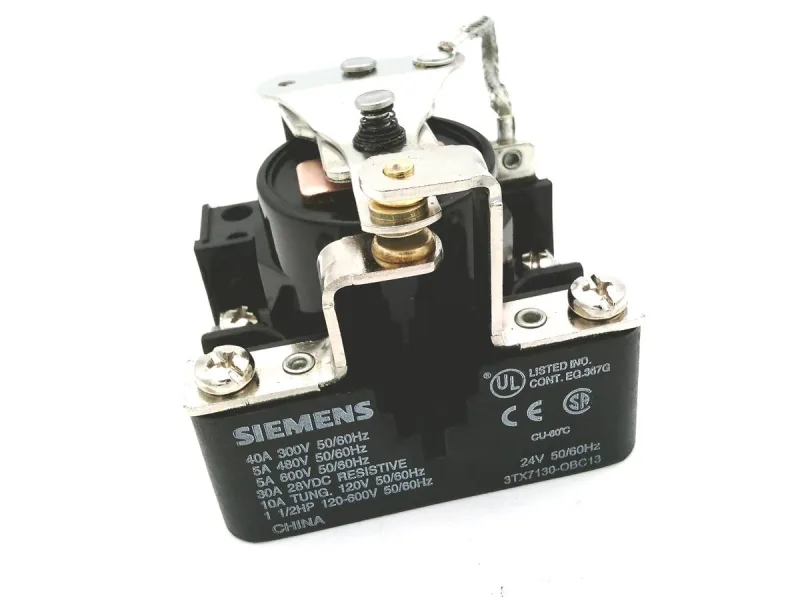

Siemens 3TX7130-0AF13
MPN3TX7130-0AF13
OPEN PWR RELAY SPST-NO-DM 40A 120VAC|OPEN PWR RELAY SPST-NO-DM 40A 120VAC
$56.93 – $84.77Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 3TX71 Series |
| Coil voltage | 120V AC |
| Coil voltage (Nominal@60Hz) | 120V AC |
| Current rating | 40 A |
| Horsepower @ 120V AC | 1/3 hp |
| Contact form | SPST-NO |
| Relay mounting style | Surface |
| Electrical operating durability | 100,000 |
| Mechanical operating durability | 1,000,000 |
| Brand | SIEMENS |
| Motor rated | Yes |
| Status indicator | No Indicator |
| Contact rating | 40 A @ 120V |
| Dielectric strength | 1,500 Vrms Between Contacts; 2,200 Vrms Between Coil and Contact; 2,200 Vrms Between Poles |
| Push-To-Test button | No Test Button |
MPN
3TX7130-0AF13
