Siemens 3TX7130-0CD03
MPN3TX7130-0CD03

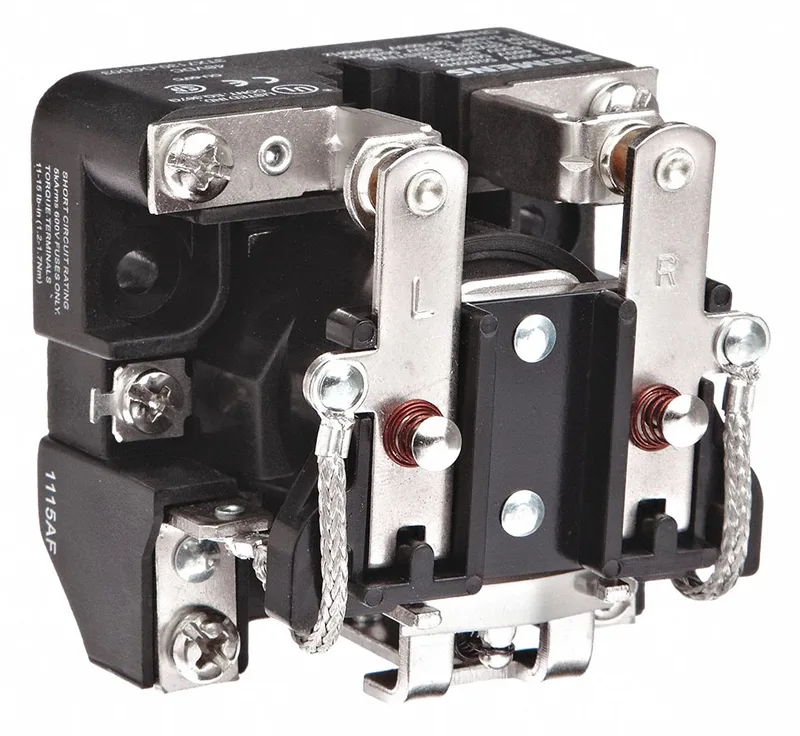

SIEMENS Open Power Relay: Surface Mounted, 40 A Current Rating, 48V DC, DPST-NO
$149.66Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Series | 3TX71 Series |
| Motor rated | Yes |
| Coil voltage | 48V DC |
| Contact form | DPST-NO |
| Current rating | 40 A |
| Status indicator | No Indicator |
| Contact rating | 40 A @ 48V |
| Dielectric strength | 1,500 Vrms Between Contacts; 2,200 Vrms Between Coil and Contact; 2,200 Vrms Between Poles |
| Push-To-Test button | No Test Button |
| Horsepower @ 120V AC | 1/3 hp |
| Relay mounting style | Surface |
| Electrical operating durability | 100,000 |
| Mechanical operating durability | 1,000,000 |
MPN
3TX7130-0CD03
