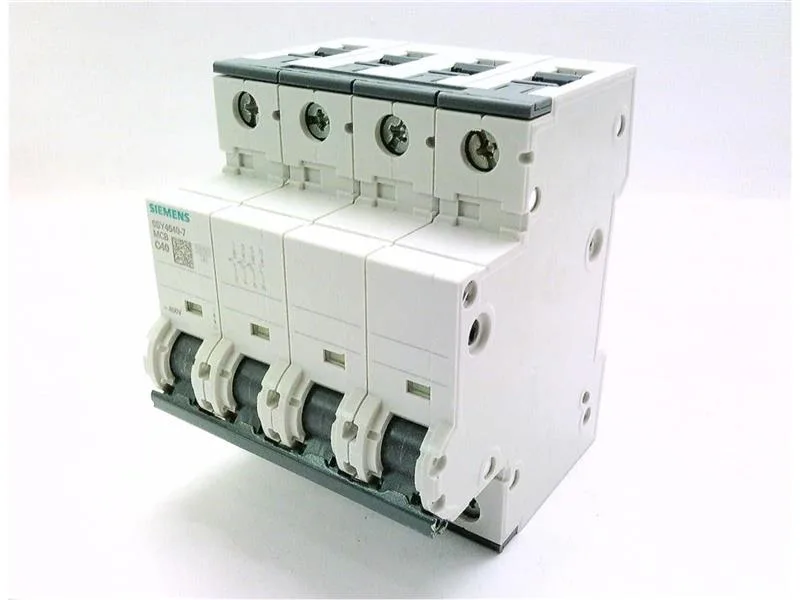

Siemens 5SY4640-7 — 4-Pole MCB (DIN Rail)

5SY4640-7 SENTRON MCB 4P C 40A 10kA IEC/EN 60898-1

MPN5SY4640-7
Active

Siemens SENTRON 5SY4640-7, miniature circuit breaker, 4-pole (3P+N), C-curve, 40 A, 10 kA per IEC/EN 60898-1, 15 kA per IEC 60947-2.

$72.39Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY4640-7 — Identification
ParameterValue
Brand nameSENTRON
Application suitabilityMechanical engineering / industry
5SY4640-7 — Ratings
ParameterValue
Number of poles4
Pole configuration3P+N
Rated voltage, AC (multi-phase)440 V
5SY4640-7 — Protection
ParameterValue
Tripping characteristic (trip curve)C
Energy limitation class3
Overvoltage categoryIII
Pollution degree3
Degree of protection (IP)IP20, with connected conductors
5SY4640-7 — Mechanical
ParameterValue
Width in modular units4
Width72 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Fastening / mounting methodQuick assembly system
Mounting positionany
Combined terminal, topYes
Combined terminal, bottomYes
Tightening torque, max.75 °C
Tightening torque, min.-40 °C
SealableYes
5SY4640-7 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of ambient temperature (derating)max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
5SY4640-7 — Performance
ParameterValue
Power loss per pole, AC (hot state, at In)3.5 W

Product details

It breaks faults at 10 kA per IEC/EN 60898-1 and 15 kA per IEC 60947-2, with the same 15 kA rating at DC per IEC 60947-2. The neutral pole is switched, so you get full isolation on all four poles — no exceptions.

The 10 kA breaking capacity at 400 V AC is the rating under IEC/EN 60898-1, which covers domestic and light commercial installations; the 15 kA rating under IEC 60947-2 applies in industrial panels where the prospective fault current is higher. That 15 kA also holds at DC, so the same part works in DC distribution up to 60 V or 72 V max.

This MCB is specified for mechanical engineering and industry applications. Sealable for lockout/tagout compliance; if it's not locked, it's not safe.

The breaker is certified to IEC/EN 60898-1 and IEC/EN 60947-2, plus UL 1077. That dual rating means it qualifies for both IEC-based distribution boards and UL-recognized industrial control panels. Halogen-free and silicon-free — no silicone outgassing to foul contacts in sealed enclosures.

Frequently asked questions

Where can I buy the 5SY4640-7?

It is sourced to order against an RFQ through independent distribution. Submit a quote request for current pricing and availability.

What is the breaking capacity of 5SY4640-7?

10 kA per IEC/EN 60898-1 at 400 V AC, 15 kA per IEC 60947-2 at 400 V AC, and 15 kA at DC per IEC 60947-2.

Will 5SY4640-7 drop into a panel specified for 5SY6332-7CC?

Both are 4-module-width SENTRON MCBs on the same DIN-rail footprint, so the mechanical fit is identical. The deciding difference is the rating: the 5SY4640-7 is a 40 A C-curve; the 5SY6332-7CC is a different current/curve combination. Verify the load requirement before swapping.
