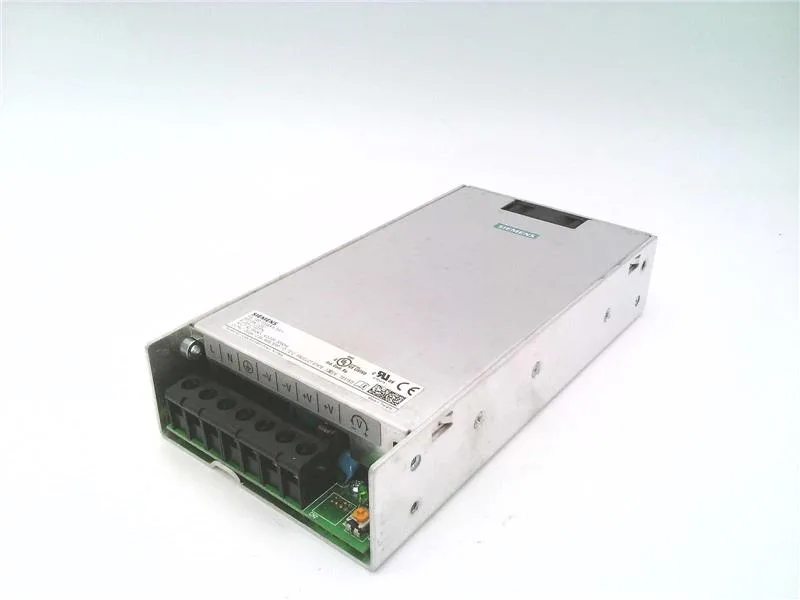

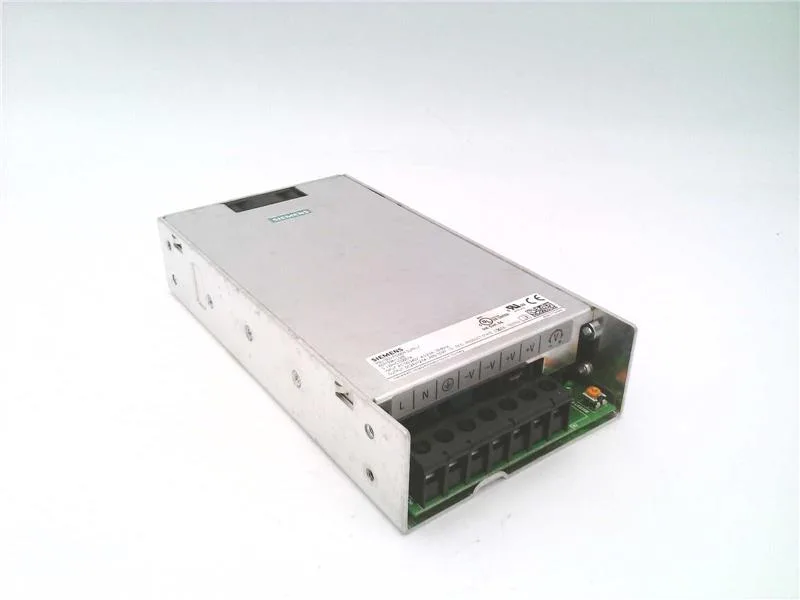

Siemens 6EP1334-1LD00
MPN6EP1334-1LD00
********** spare part ********* PSU100D 24 V/12.5 A stabilized power supply input: 100-240 V AC output: 24 V DC/12.5 A
$127.00 – $283.05Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse protection type | internal |
| Type of electrical connection | screw-type terminals |
| Type of output voltage setting | via potentiometer |
| Type of the power supply network | 1-phase AC |
| Voltage curve at output | Controlled, isolated DC voltage |
| Adjustable output voltage | 22 ... 28 V |
| At rated input voltage 100 | 4 A |
| At rated input voltage 240 | 2 A |
| Output voltage at DC rated value | 24 V |
| On slow fluctuation of input voltage | 0.5 % |
| Relative overall tolerance of the voltage | 2 % |
| Product function output voltage adjustable | Yes |
All specifications+66 ▾
| Parameter | Value |
|---|---|
| Behavior of the output voltage when switching on | Overshoot of Vout < 2 % |
| At rated output voltage for rated value of the output current typical | 48 W |
| Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical | 0.5 % |
| Design of Short-Circuit protection | Electronic shutdown, automatic restart |
| Property of the output Short-Circuit proof | Yes |
| Current limitation of inrush current at 25 °C maximum | 60 A |
| Buffering time for rated value of the output current in the event of power failure minimum | 15 ms |
| Supplied active power typical | 300 W |
| Number of Parallel-Switched equipment resources for increasing the power | 2 |
| Line frequency | 47 ... 63 Hz |
| Depth of the enclosure | 41 mm |
| Width of the enclosure | 105 mm |
| Height of the enclosure | 199 mm |
| CE marking | Yes |
| UL approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus (UL 60950-1, CSA C22.2 No. 60950-1), File E151273 |
| CSA approval | Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus (UL 60950-1, CSA C22.2 No. 60950-1), File E151273 |
| EAC approval | Yes |
| ULhazloc approval | No |
| Top | 20 mm |
| ATEX | No |
| Left | 20 mm |
| IECEx | No |
| Right | 20 mm |
| Bottom | 0 mm |
| DNV GL | No |
| Typical | 1 mA |
| At input | L, N, PE: 1 screw terminal each for 0.5 ... 1.3 mm² single-core/finely stranded |
| At output | +, -: 2 screw terminals each for 0.5 ... 1.3 mm² |
| NEC class 2 | No |
| Rated range | 0 ... 12.5 A; +50 ... +70 °C: Derating 2.5%/K |
| Rated value | 12.5 A |
| 1 rated value | 50 Hz |
| 2 rated value | 60 Hz |
| In the feeder | Recommended miniature circuit breaker: from 10 A characteristic C or from 16 A characteristic B |
| Initial value | 85 V |
| During storage | -40 ... +85 °C |
| FM registration | No |
| During operation | -10 ... +70 °C; with forced convection (ventilator) |
| During transport | -40 ... +85 °C |
| Mounting | Wall mounting |
| Full-Scale value | 264 V |
| I2t value maximum | 1.1 A²·s |
| Other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
| Galvanic isolation | Safety extra low output voltage Vout according to EN 60950-1 |
| Maximum rated value | 240 V |
| Minimum rated value | 100 V |
| Protection class IP | IP20 |
| Bridging of equipment | Yes |
| Efficiency in percent | 86 % |
| Response delay maximum | 1 s |
| For emitted interference | EN 55022 Class B |
| Nippon kaiji kyokai | No |
| For interference immunity | EN 61000-6-2 |
| cCSAus, class 1, division 2 | No |
| At output 1 at DC rated value | 24 V |
| For mains harmonics limitation | EN 61000-3-2 |
| Design of input wide range input | Yes |
| Lloyds register of shipping | No |
| On slow fluctuation of ohm loading | 0.5 % |
| Operating resource protection class | Class I |
| Design of the overvoltage protection | < 35 V |
| Display version for normal operation | Green LED for 24 V OK |
| French marine classification society | No |
| Operating condition of the mains buffering | at Vin = 115/230 V |
| Galvanic isolation between input and output | Yes |
| American bureau of shipping europe ltd. | No |
