CPU 416-2 – what the key specs mean for fit

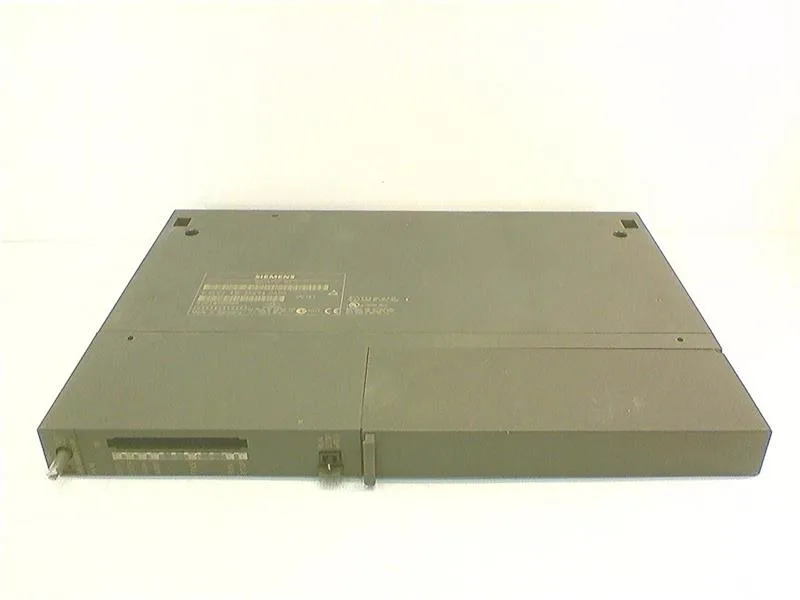

The Siemens 6ES7416-2XK04-0AB0 is a SIMATIC S7-400 CPU 416-2 with a 244-byte input and 244-byte output process image — that is the I/O memory it can exchange each cycle, enough for a mid-size distributed system with multiple remote racks. It supports programming in CFC, FBD, LAD, SCL, STL, and GRAPH, so whatever block language your line uses, this CPU compiles it. The FM (function module) capacity is not a fixed number: it is limited by the number of slots in the rack and the number of connections available, meaning you add FM modules until you run out of physical slots or the CPU's communication budget. For PROFIBUS DP communication, the CPU relies on a CP 443-5 Extended module, supporting up to 10 connections via that CP. It also supports MPI, RS 485, and routing, so it fits into multi-network architectures where one CPU talks to several subnets. The CPU can act as both a DP client and server, which is useful when it needs to exchange data with other DP masters or be accessed by an HMI.
Programming and diagnostic depth
This CPU supports forcing — a commissioning and troubleshooting tool that lets you override process image values during testing without changing the program. It also supports system function blocks (SFB type) and system functions like, RDSYSST, and, each with a capacity of 8 (meaning up to 8 simultaneous instances). That matters when you are building a structured program that reads or writes data records to distributed I/O. The CPU supports DP topology for one PROFIBUS segment, and it can read and write parameters to configure DP slaves programmatically. For safety-related or high-availability systems, the GSD file for PROFIBUS integration is available from Siemens directly.
Integration and mounting
The CPU mounts in a standard S7-400 rack (UR1/UR2) and occupies one slot. Dimensions are 25 mm wide, 290 mm high, 219 mm deep — fits the standard 19-inch cabinet footprint. The backplane bus is isolated, so the CPU is electrically isolated from the rack, reducing ground-loop issues in mixed-voltage panels. Communication via CP modules: CP 443-5 Extended for PROFIBUS (up to 10 connections), CP 440 for PtP (limited by slots), CP 441 for PtP (limited by connections). For Ethernet or PROFINET, a CP 443-1 is required. The CPU itself does not have onboard Ethernet — plan for a CP module if your network is IP-based.
