Siemens 6ES7972-4AA00-0XA0 — PLC Accessories

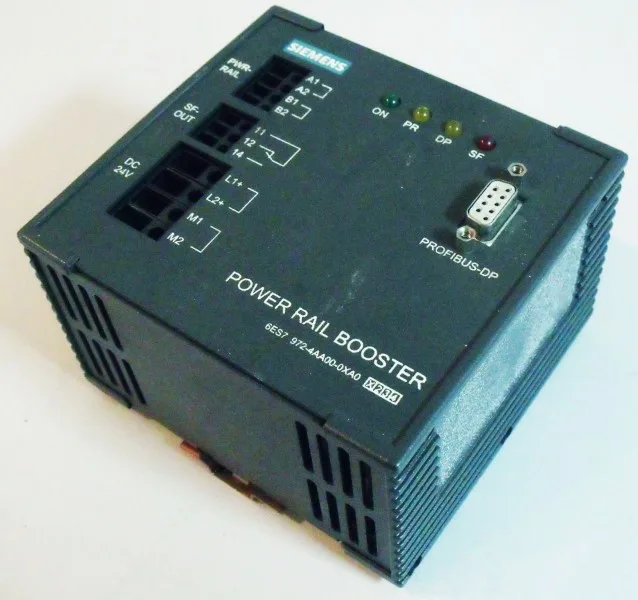

Siemens 6ES7972-4AA00-0XA0 SIMATIC DP Power Rail Booster, 50

MPN6ES7972-4AA00-0XA0

Siemens SIMATIC DP power rail booster signal amplifier, 6ES7972-4AA00-0XA0, for PROFIBUS-DP over collector wires, max 500 kbit/s, approx. 1 100 g.

$506.35Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6ES7972-4AA00-0XA0 — Specifications
ParameterValue
Weight, approx.1 100 g

Product details

The Siemens 6ES7972-4AA00-0XA0 is a SIMATIC DP power rail booster — a signal amplifier purpose-built for transmitting the PROFIBUS-DP protocol over collector wires at a maximum of 500 kbit/s. It's a spare part, not a new-design component, so the fit decision hinges on whether your existing PROFIBUS-DP segment uses collector-wire infrastructure rather than standard twisted-pair cabling.

What the key rating means

The 500 kbit/s data rate is the maximum transmission speed for this booster. That's the standard PROFIBUS-DP speed for many field devices, but if your segment runs at 12 Mbit/s (the PROFIBUS maximum), this booster won't keep up. The collector-wire medium itself imposes a speed ceiling — this part is matched to that constraint, not to a high-speed backplane.

Frequently asked questions

Will this drop into a panel specified around the 6ES7405-0KR02-0AA1?

No — the 6ES7405-0KR02-0AA1 is a power supply module (PS 405) with a different form factor and backplane interface. The 6ES7972-4AA00-0XA0 is a signal amplifier for the PROFIBUS-DP collector wire, not a power supply, and occupies a different slot type in the S7-400 rack.

MPN
6ES7972-4AA00-0XA0
