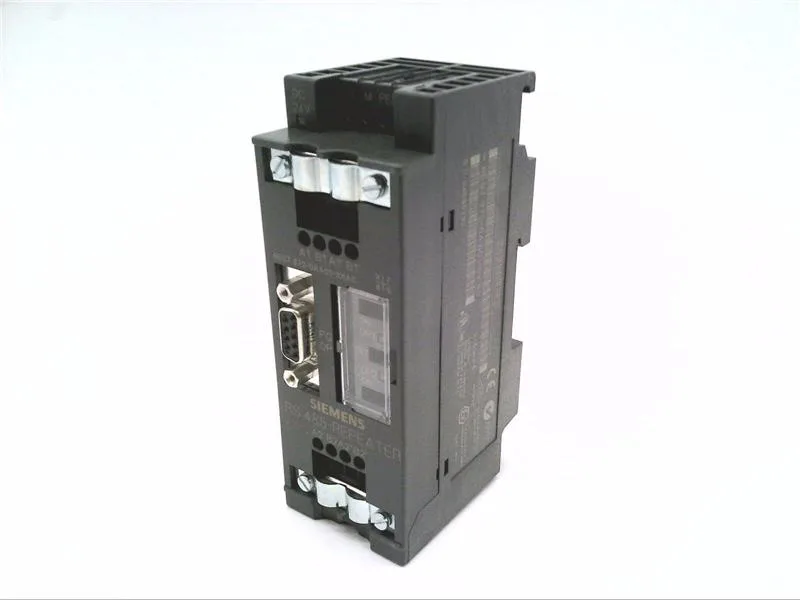

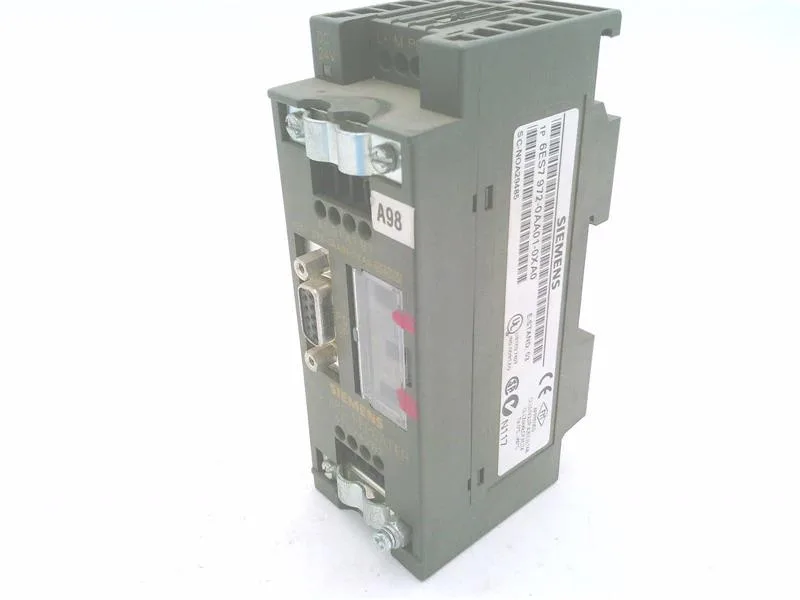

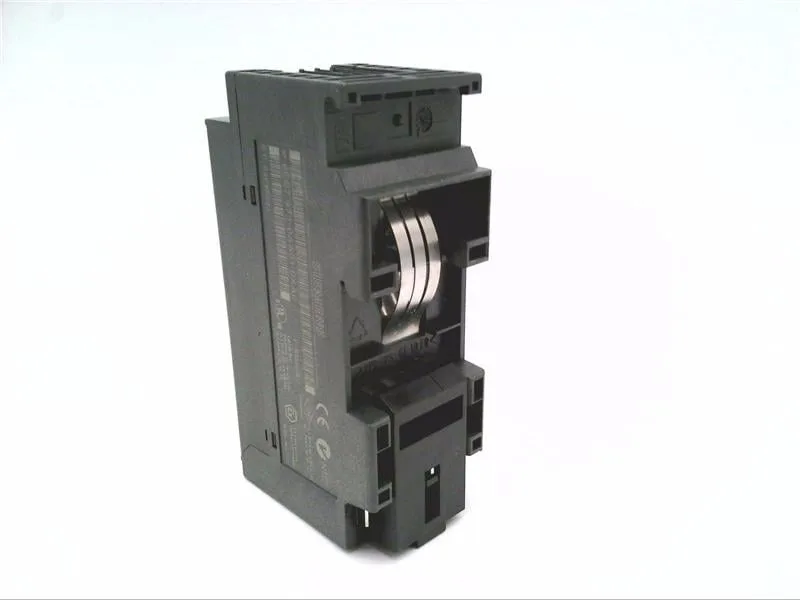

The Siemens 6ES7972-0AA01-0XA0 is a SIMATIC DP RS485 repeater designed to extend and regenerate PROFIBUS and MPI bus segments. It supports up to 31 nodes per segment and handles transmission rates from 9.6 kbit/s to 12 Mbit/s, auto-sensing the baud rate so you don't need DIP switches for speed selection. Power is drawn from a 24 VDC supply (20.4 to 28.8 V permissible range). The repeater consumes 200 mA without load on the PG/OP socket; with a programming device or operator panel connected, budget for up to 230 mA at the 5 V pin or 300 mA at the 24 V pin.
The 12 Mbit/s ceiling covers the full PROFIBUS speed range — from the 9.6 kbit/s used on long cable runs up to the 12 Mbit/s typical for drive islands and high-speed I/O. The repeater regenerates the signal and provides electrical isolation between segments, which is critical when you're crossing panel boundaries or running cable past variable-frequency drives. IP20 means it's intended for a clean, dry enclosure — no washdown, no dust. Mount it inside a cabinet with at least IP54 protection for the overall panel. The 45 mm width (roughly 2.5 standard DIN spaces) fits alongside a typical S7-300 power supply or CPU without crowding. The -40 to 70 °C operating range covers unheated warehouses and outdoor cabinets in temperate climates, but the 95 % humidity limit at 25 °C means condensation is the real enemy — keep the cabinet above the dew point or add a cabinet heater if the repeater sits in a cold, humid environment.
Connection and wiring
Supply voltage connects via a terminal module; the PROFIBUS cables land on two terminal blocks — one for the incoming segment, one for the outgoing. No backplane bus is involved; the repeater is a standalone device that sits between two bus segments.
