What the CU240B-2 actually is on the SINAMICS G120

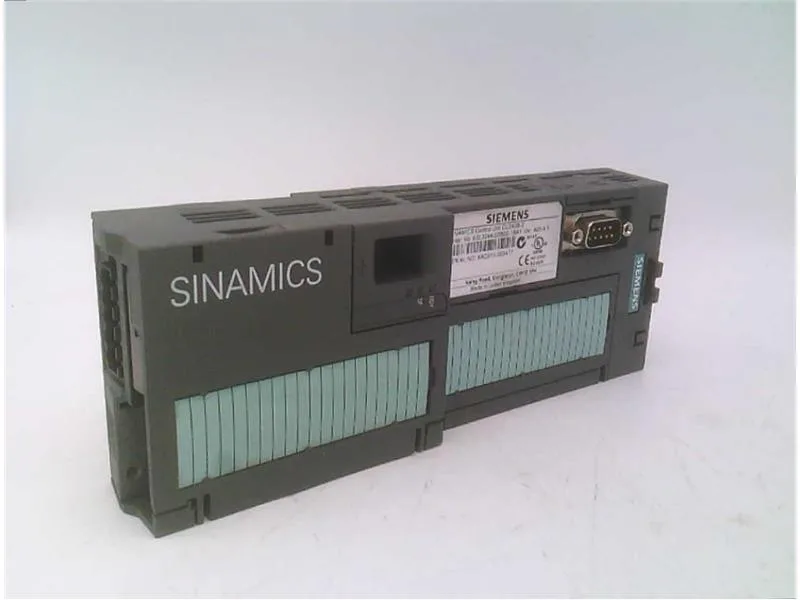

The Siemens 6SL3244-0BB00-1BA1 is the SINAMICS G120 Control Unit CU240B-2, the parameterisation and I/O brain that bolts onto a separate SINAMICS G120 Power Module rather than the drive's power stage itself. It is ordered and shipped as a spare part, which means it is the swap-out module you carry when a failed CU takes a line down, not the complete drive. The on-board I/O is modest by design: 4 digital inputs, 1 digital output, 1 analogue input, 1 analogue output, plus a PTC / KTY / thermoclick interface for motor temperature protection. That envelope is the deciding factor for fit — any application that needs more than four digital inputs lands on the CU240E-2 or a higher CU, not this one.
Fieldbus slice and commissioning interface
Communication runs over an RS-485 port carrying both USS and Modbus RTU, which is what puts this B-type CU240B-2 into legacy serial-fieldbus retrofits and small machine builds where a PROFINET slice is not justified. The front-panel USB plus SD/MMC slot give the commissioning engineer the parameter upload/download path and firmware version slot without taking the drive out of the panel. Standalone draw from the Power Module is DC 24 V, the standard control rail on a G120 stack — confirm the 24 V supply budget on the cabinet before adding the CU, because a weak rail will fault the CU on power-up.
Thermal envelope, IP rating, and panel placement
Operating ambient is -10 to 55 °C and storage is -40 to 70 °C, so the unit is rated for an unconditioned control cabinet but not for an unventilated engine-room or outdoor enclosure without derating. Degree of protection is IP20 / UL open type, which means finger-safe behind the cabinet door but not sealed for washdown or food-grade duty — this is a cabinet-mounted module, not a field-mounted one.
Loss budget and lifecycle read
Power loss is 5.50 W at the control unit alone, which is the figure the cabinet thermal calc must add on top of the Power Module's loss before sizing the enclosure fan or filter. Lifecycle stage is recorded as mature, so the platform is in long-term support rather than active growth — confirm firmware compatibility with the connected Power Module before quoting, because a mature-line swap into a newer PM is not always drop-in. Production-quantity lead time is listed at 1 to 10 working days off the distribution channel, so a planned spare purchase fits a normal MRO cycle; line-down urgency is handled through the same channel with availability re-confirmed at quote time.
