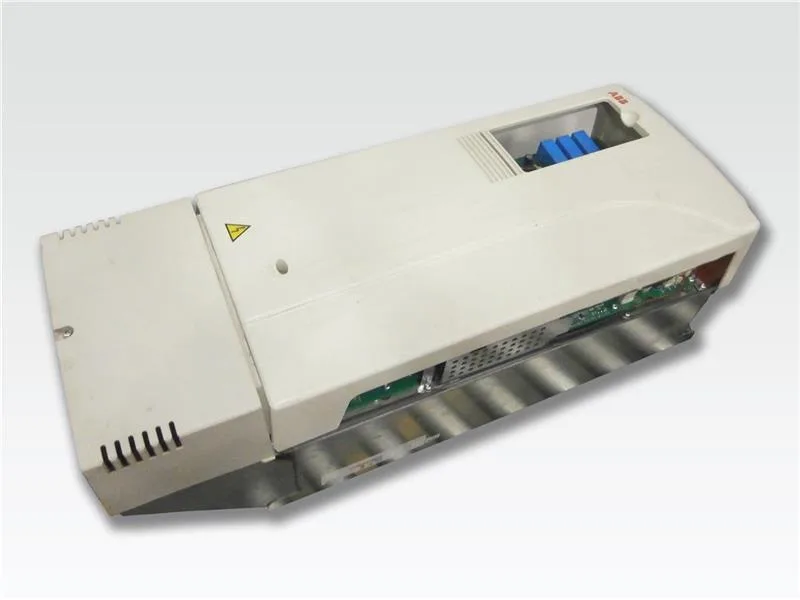

The ABB ACS800-01-0070-5+D150 is a wall-mount low-voltage AC drive in the ACS800-01 frame, ordered with the +D150 option suffix and listed at 33.11 kg unit mass in the Motors & Motor Controls › Drives › Motor Drives line. The +D150 option string is appended to the base drive code, so the part number, the option, and the frame size all travel together on the nameplate and on the purchase order — verify the full string when matching a spare against an installed unit.
Frame context and where the ACS800-01 sits
The ACS800-01 designation marks the wall-mount / cabinet-build form factor in the ACS800 family, intended for panel-builder integration rather than the larger free-standing frames used in higher-power cells. Drives in this class are used to vary motor speed and torque on standard induction motors in industrial cells — the role here is the same as any low-voltage AC drive in the line, with the option code carrying application-specific firmware or interface additions the base code does not.
Comparing across the ABB drive lines
The ACS550-U1-072A-4+B055+L512 and ACS550-U1-059A-4+B055 stay in the older-generation ACS550 family at 34.02 kg and 36.29 kg respectively — closer in mass class to the ACS800-01-0070-5+D150, but again a different platform rather than a drop-in alternate.
Sourcing posture
Quoted to order against an RFQ — the order code travels with the +D150 option suffix and is specified into the BOM as a single string, so substitutions or option drops need to clear engineering review before the line is released.
