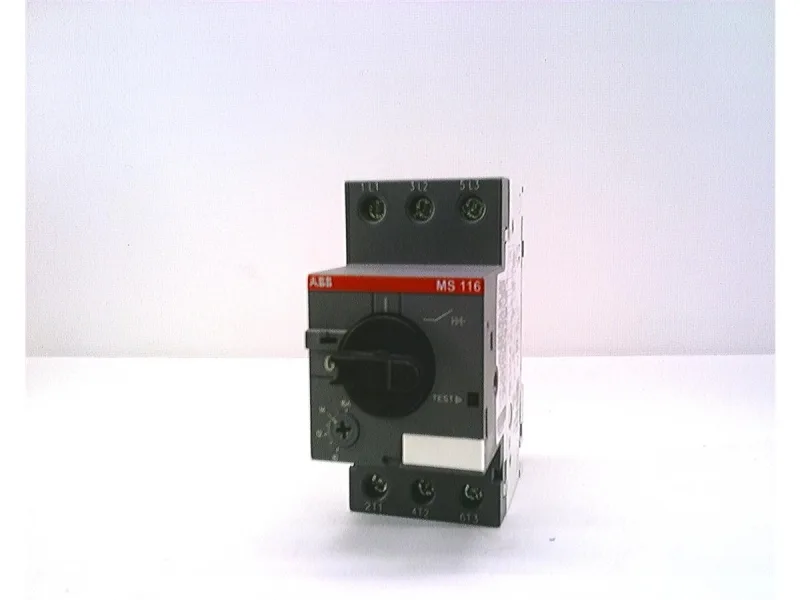

ABB MS116-0.16
MPNMS116-0.16
3P MMP 0.1-0.16A RANGE|3 pole, 0.1 to 0.16 amp, UL rated, MS116 manual motor protector
$22.86Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Manual Motor Starter |
| Actuation | Rotary Handle (ON / OFF) |
| Type of product | Manual Motor Starter |
| Voltage | 690 V AC |
| Rated impulse voltage | 6 kV |
| Rated operational current | 0.16 A |
| Rated service Short-Circuit breaking capacity | 50/30 kA |
| Rated ultimate Short-Circuit breaking capacity | 100 kA |
| Power AC-3 | 0.03 kW |
| Frequency | 50 … 60 Hz |
| Poles | 3-Pole |
| Operating temperature | -25 … 70 °C |
All specifications+9 ▾
| Parameter | Value |
|---|---|
| Weight | 0,24 kg |
| Dimensions | 90 x 45 x 85.6 mm |
| Model | MS116-0.16 |
| Condition | New |
| Shelf no. | 240224 , 240824 |
| Manufacturer | ABB |
| Sitting range | 0.1 … 0.16 A |
| IP rating | IP20 |
| Alternative model | 1SAM250000R1001 |
MPN
MS116-0.16
