The ABB MS116-16 is a 3-phase manual motor protector (MMP) rated for 1.6 A full-load amps (FLA), adjustable from 1.0 to 1.6 A via the dial. That 1.6 A ceiling means it is sized for small motors — fractional-horsepower pumps, fans, or conveyor drives — where the motor nameplate FLA lands inside that window. The unit includes short-circuit protection and phase-failure detection — the latter drops the load if one phase is lost, preventing single-phasing damage to the motor.

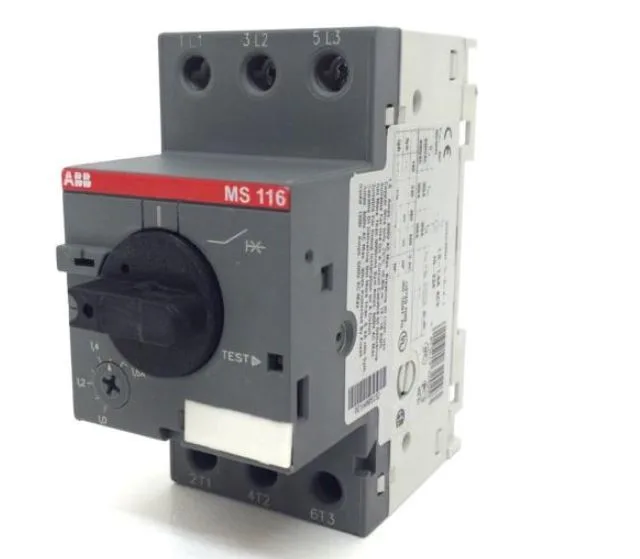

ABB MS116-16 Manual Motor Protector, 1.6 A, Trip Class 10
MPNMS116-16
ABB MS116-16 Manual Motor Protector, 1.6 A FLA, adjustable 1-1.6 A, trip class 10, 3-phase, 600 V rated, 45 mm width.
$20.84Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Amps | 1.600 |
| Type | Manual Motor Protector |
| Phases | 3 |
| Amps range | 1 - 1.600 |
Product details
Frequently asked questions
What is the current rating (FLA) of ABB MS116-16?
The ABB MS116-16 is rated for 1.6 A full-load amps (FLA), adjustable from 1.0 to 1.6 A via the dial.
What is the trip class of MS116-16?
The MS116-16 has a trip class of 10, meaning it will trip within 10 seconds at 600% of the set current.
Does MS116-16 include phase failure detection?
Yes, the MS116-16 includes phase failure detection as a built-in feature, protecting the motor from single-phasing.
MPN
MS116-16
