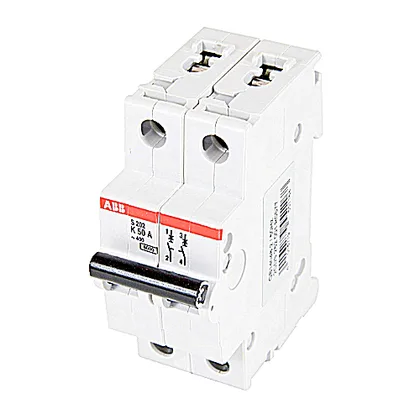

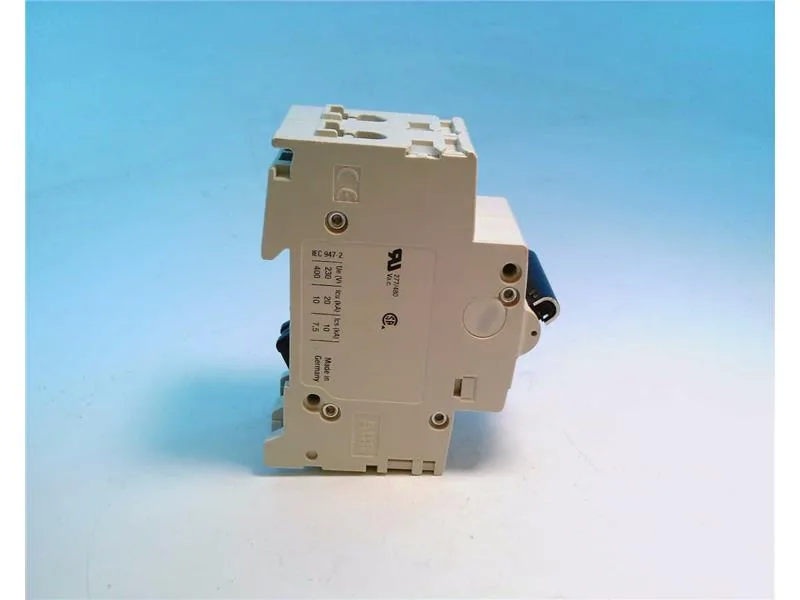

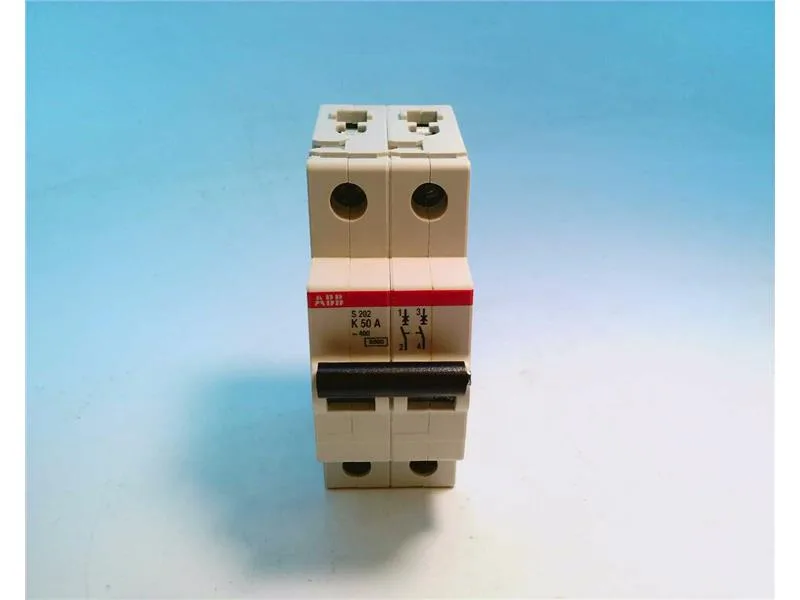

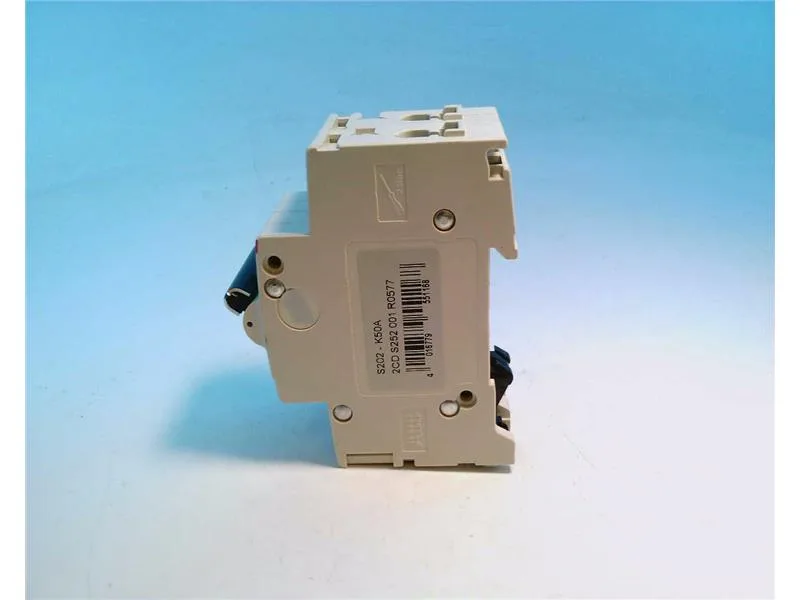

ABB S202-K50 — 2-Pole MCB (DIN Rail)

S202-K50 Miniature Circuit Breaker 2P K 50A

MPNS202-K50

ABB S200 series miniature circuit breaker, supplementary protector, 2-pole, Trip Curve K, 50 A, 6 kA interrupting at 277 VAC, DIN rail mount, UL 1077.

$222.44Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

S202-K50 — Specifications
ParameterValue
Amps50
TypeTrip Curve K
Poles2
MountingDIN Rail
Volts AC277
Breaking capacity6 kA

Product details

It's a supplementary protector per UL 1077, meaning it's built for branch-circuit protection inside equipment, not as a main service disconnect.

What Trip Curve K means for your load

Trip Curve K is the middle ground between a B curve (light commercial loads) and a D curve (high-inrush motor circuits). The thermal-magnetic mechanism inside gives you a thermal trip for sustained overloads and a magnetic trip for fast short-circuit clearance.

Where it goes and how it fits

The finger-safe terminals accept up to the wire range you'd expect for 50 A (typically #14–#4 AWG copper). It's a panel-mount part: you'll see it inside a control cabinet feeding a motor starter, a power supply, or a heating load. No special mounting hardware needed, just a slot on the rail and a screwdriver for the terminals.

Frequently asked questions

Where can I buy S202-K50 and how do I get a price?

We source the S202-K50 to order against an RFQ. Availability and current pricing are confirmed at quote time — submit an RFQ through the page and we'll get you a firm price and lead time.

What is S202-K50's listed amps and interrupting rating?

The S202-K50 is rated at 50 A continuous with a 6 kA interrupting capacity at 277 VAC. The 6 kA figure is the fault current it can safely clear — match that against your available fault current at the panel.

What compliance documentation does this breaker carry?

It's UL 1077 listed as a supplementary protector and CSA 22.2 No. 235 certified. That covers North American installations where branch-circuit overcurrent protection is already provided upstream.

MPN
S202-K50
