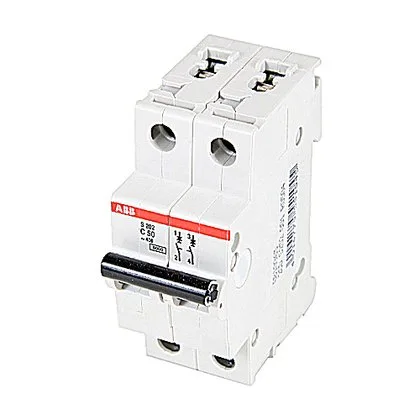

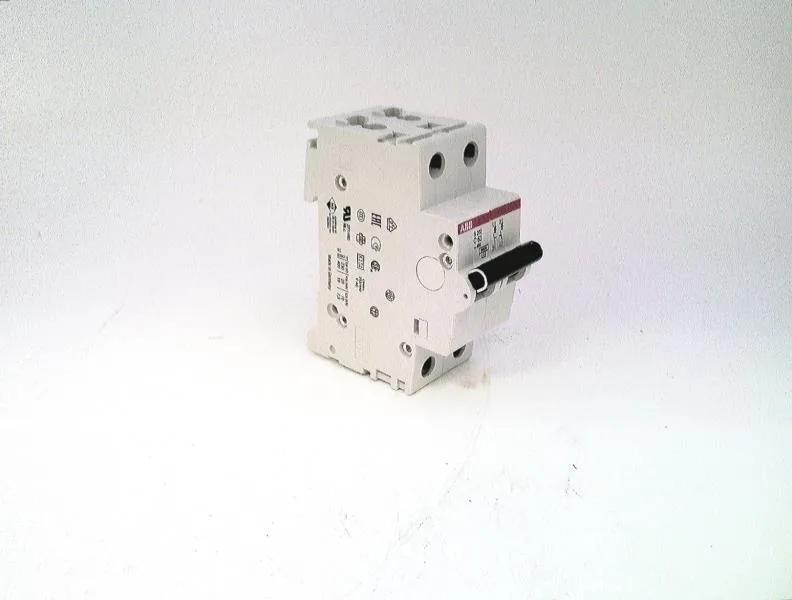

ABB S202-C63

S202-C63 Miniature Circuit Breaker, 2P, 63A, Curve C, DIN Ra

MPN S202-C63

ABB S202-C63, Miniature Circuit Breaker, 2-pole, 63 A, Trip Curve C, 277 VAC, 6 kA interrupting rating, DIN Rail mount.

$22.86 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S202-C63 specifications
ParameterValue
Product typeTrip Curve C
Current63 A
Breaking capacity6 kA
Poles2
MountingDIN Rail

Product details

The S202-C63 is a 2-pole miniature circuit breaker rated 63 A with a Trip Curve C characteristic, meaning it trips at 5–10× rated current — the standard choice for mixed resistive and moderate inductive loads like lighting circuits, small motor starters, and control transformers where you need to ride through inrush without nuisance trips.

This breaker lives on a DIN rail inside a distribution board, motor control center, or sub-panel. It's sized for branch-circuit protection in 277/480 VAC wye systems (line-to-neutral on a 480Y/277 V supply). The 2-pole configuration covers a single-phase load or a two-wire branch off a three-phase system. When you're laying out the rail, leave a module space per pole — it occupies two 18 mm-wide positions. No gland plate or fill factor concerns beyond standard DIN-rail spacing.

MPN
S202-C63
