What the ratings mean for fit

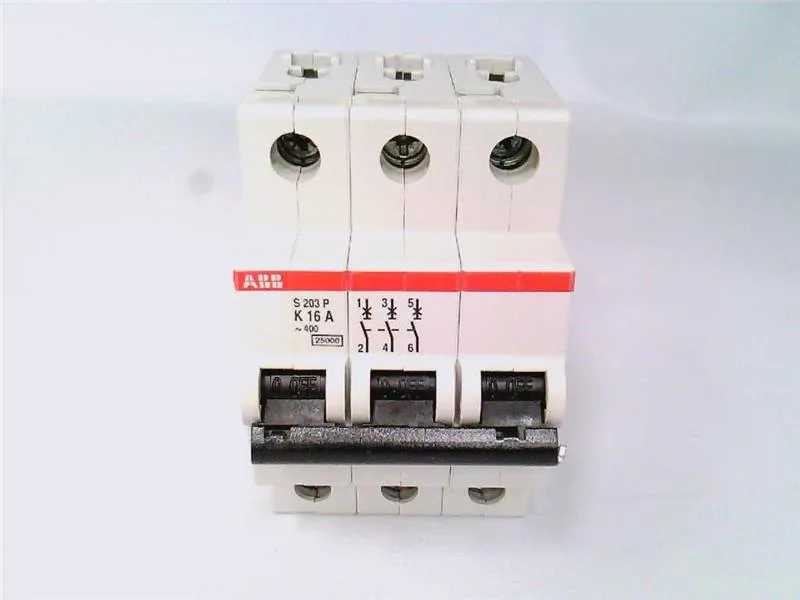

The ABB S203P-K16 is a 3-pole miniature circuit breaker rated 16 A with a Trip Curve K characteristic, designed for DIN-rail mounting in distribution panels. The K curve is the key differentiator here — it's engineered for loads with high inrush currents like motors and transformers, tripping magnetically between 10 and 14 times rated current (160–224 A instantaneous trip). That's wider than a C curve (5–10×) but tighter than a D curve (10–20×), so it's a middle ground for industrial loads that need short-circuit protection without nuisance tripping on startup. The 10 kA interrupting rating at 277 VAC (phase-to-neutral) means this breaker can safely clear a fault up to 10,000 amps without welding contacts or cascading failure upstream. For a 16 A branch circuit in a 277/480 V panel, that's adequate for most commercial and light industrial installations where the available fault current stays under 10 kA. If your service entrance has a higher SCCR, you'll need a current-limiting upstream breaker or a higher-rated MCB.
Integration note
Snap-on DIN rail mounting, standard 3-module width (52.5 mm at 17.5 mm per pole). The S200 series uses tunnel terminals accepting up to 25 mm² conductor — sufficient for 16 A circuit wiring. No special busbar or comb required for the three poles; standard pin busbars fit the terminal layout.
