Autonics BYD3M-TDT-P

BYD3M-TDT-P Autonics Through-Beam Sensor, 3m, PNP, 12-24 VDC

MPN BYD3M-TDT-P

Autonics BYD series, through-beam photoelectric sensor, BYD3M-TDT-P, 3m detection, PNP open collector, 12-24 VDC, Dark ON.

$96.42 – $109.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

BYD3M-TDT-P specifications
ParameterValue
Operation modeDark ON (Light ON : Option)

Product details

The BYD3M-TDT-P shares the same 3 m range, supply voltage, and through-beam form factor as the BYD3M-TDT, but swaps the output from NPN to PNP. If your existing panel wiring expects a sinking (NPN) input, the BYD3M-TDT-P sources current instead — check the PLC input module type before swapping. The BPS3M-TDT-P is another PNP through-beam at 3 m but uses a different series housing; verify mounting dimensions if retrofitting into an existing bracket.

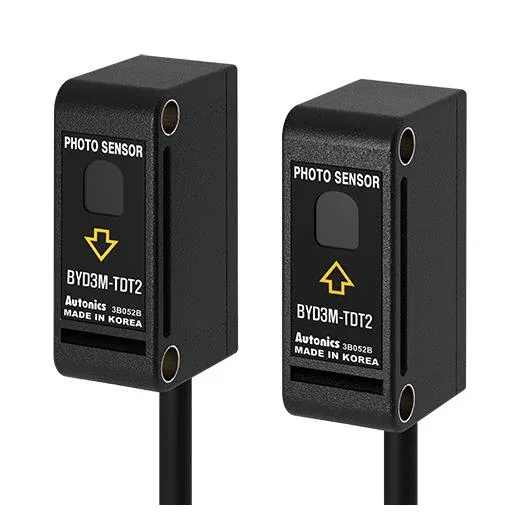

Through-beam sensors require an emitter and receiver aligned across the detection gap. The 3 m range suits medium-length conveyor paths, machine access gates, or part-present detection in automated assembly. Power at 12–24 VDC; PNP output pulls high to the supply rail — wire to a sourcing input card. Dark ON means the output activates when the beam is blocked; switch to Light ON via the option if your logic requires the opposite state.

MPN
BYD3M-TDT-P
