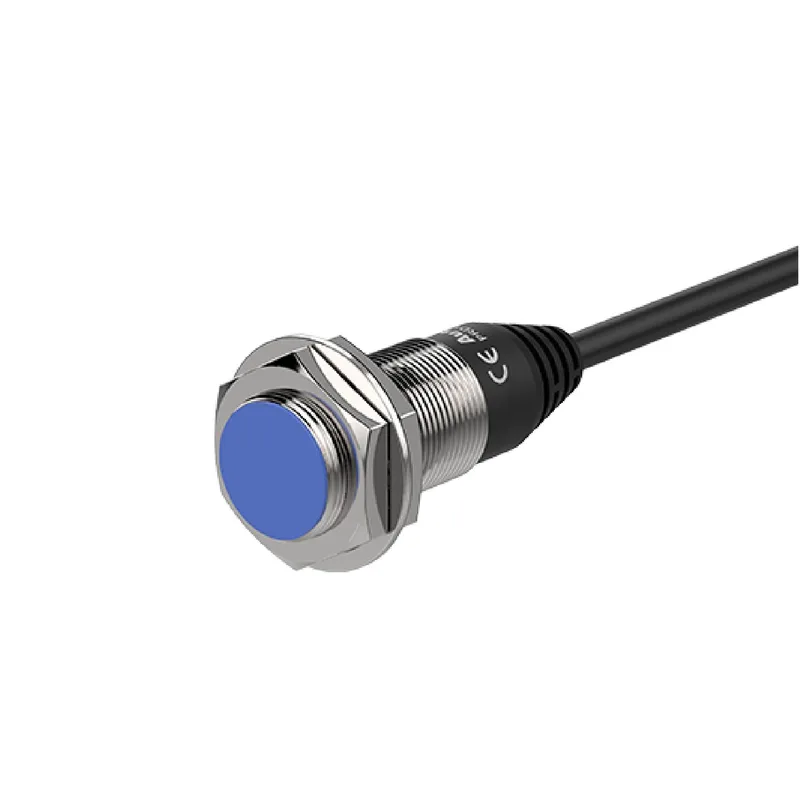

Autonics PRD18-7DN2
MPNPRD18-7DN2
Inductive Proximity Sensor
$20.00Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality Check4K Pin & Lot Verification
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 7mm |
| Parameter | Value |
|---|---|
| Material | Brass(nickel plated) |
| Parameter | Value |
|---|---|
| Weight | 115g |
| Body length | Standard type |
| Installation | Shield(flush) |
| Product type | Inductive Proximity Sensor |
| Control output | NPN Normally Closed |
| Response frequency | 300Hz |
| Wire type and power | DC 3-wire type 12-24VDC |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Protection structure | IP67 |
| Sensing side diameter | M18 |
| Cable standard (material) | Standard cable |
| Standard sensing target | 20×20×1mm(iron) |
MPN
PRD18-7DN2
