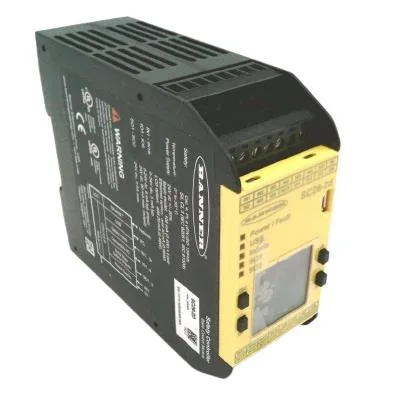

Banner Engineering SC26-2D
MPNSC26-2D
Active
SAFETY CONT 26IN/2 PR PNP OUT
$824.00 – $997.98Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | SC26-2 |
| Controller type | General Purpose |
Safety & Performance
| Parameter | Value |
|---|---|
| Safety category (Cat / PL / SIL) | Category 4, PLe, SIL3 |
I/O
| Parameter | Value |
|---|---|
| Safety outputs (count and type) | Solid State (2) |
| Inputs (count and type) | 26 - Digital |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Contact rating @ voltage | 0.08A @ 24VDC |
| Termination style | Screw Terminal |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection (IP/NEMA) | IP20/IP54 - Dust Protected, Water Resistant, NEMA 1,3 |
| Operating temperature range | 0°C~55°C |
Approvals
| Parameter | Value |
|---|---|
| Approval agencies | CE, cULus, UL |
Other specifications
| Parameter | Value |
|---|---|
| Features | Display |
MPN
SC26-2D
