The Delta AH05PM-5A is a motion control module with a 64K-step program capacity and a CPU execution speed of 0.13 μs for the LD instruction. Its data register holds 10K words for D-type and 64K words for W-type, and it draws 2.7 W from the backplane. The EU removable terminal block simplifies wiring changes during commissioning.

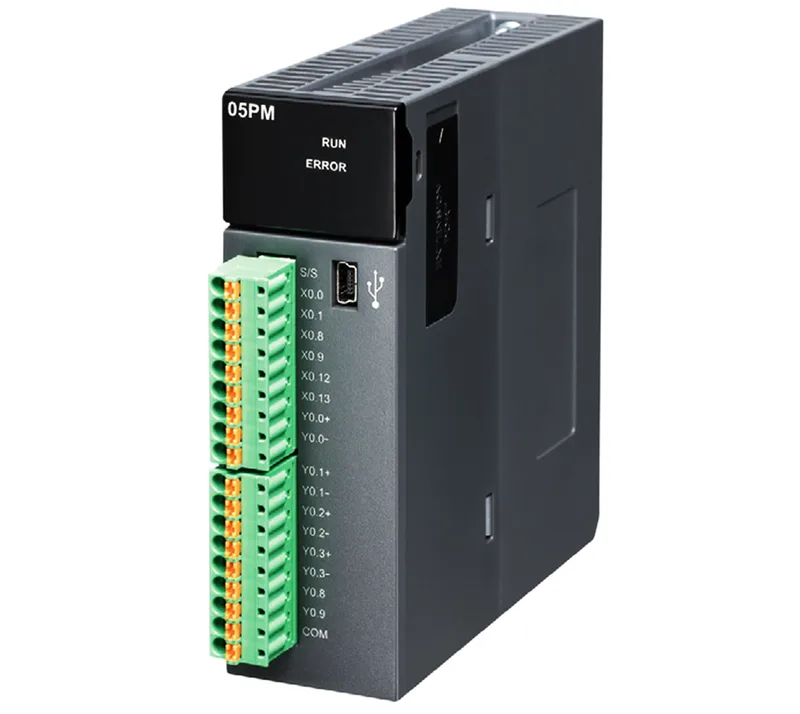

Delta AH05PM-5A Motion Control Module, 0.13μs CPU, 64K steps
MPNAH05PM-5A
Delta AH05PM-5A Motion Control Module, 64K-step program capacity, LD instruction @ 0.13μs, D=10K words / W=64K words data register, EU removable terminal block, 2.7W internal power consumption.
$878.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Model | AH05PM-5A |
| Data register | D=10K words / W=64K words |
| Program capacity | 64K steps |
| CPU execution speed | LD instruction @ 0.13μs |
| Terminal block type | EU removable terminal block |
| Power consumption (Internal) | 2.7w |
Product details
Frequently asked questions
What are the key program and data memory specifications?
The program capacity is 64K steps, and the data register is split into D=10K words and W=64K words. The CPU executes the LD instruction at 0.13 μs.
How does the AH05PM-5A compare to the AH10PM-5A?
Both modules share the same program capacity (64K steps), data register sizes (D=10K words / W=64K words), CPU speed (0.13 μs), and power consumption (2.7 W). The AH10PM-5A uses an HDC terminal block and lists optional accessories (DVPACAB7E10, DVPAETB-IO24C), while the AH05PM-5A uses an EU removable terminal block. Panel fit for the AH10PM-5A slot depends on whether the backplane and addressing scheme are identical — verify the mounting footprint before substitution.
MPN
AH05PM-5A
