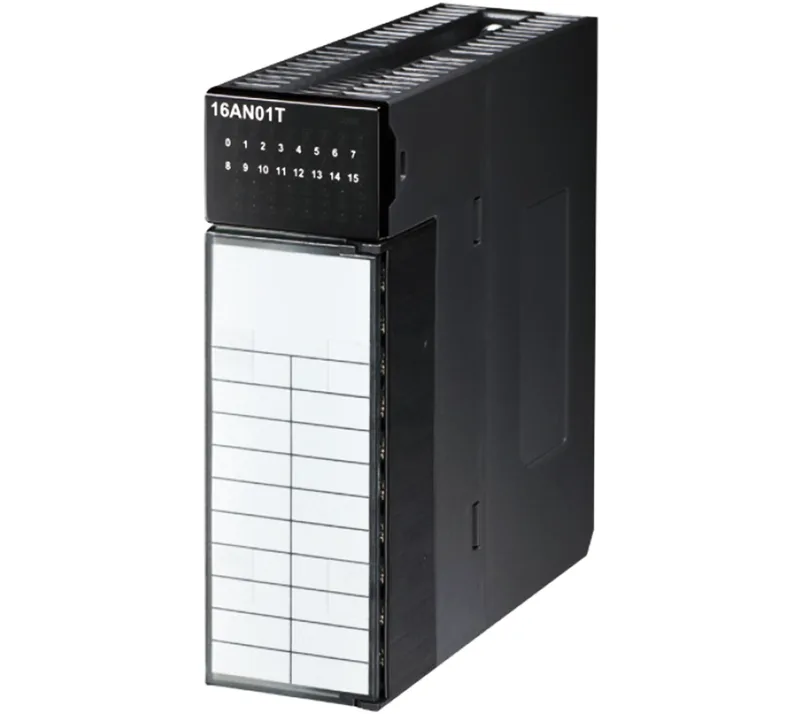

The Delta AH16AN01T-5A is a 16-point digital I/O module for the AH Series PLC platform. It delivers NPN (sink) outputs rated at 12~24VDC, 0.5A per point — sized for driving small solenoids, pilot lights, and indicator banks on a machine control panel. The module supports hot-swapping, so you can pull and replace it without cycling the rack power — a real time-saver when a point goes dead mid-shift. Individual LED status indicators on the face let you spot the bad channel at a glance. The keep-last-value function holds the output state when the CPU goes down, which keeps actuators from dropping out unexpectedly on a controlled stop. Termination is via a JIS removable terminal block — unplug the wiring block, swap the module, plug it back in. No re-termination needed.
Delta AH16AN01T-5A 16-Point NPN Sink Digital I/O Module
MPNAH16AN01T-5A
Delta AH Series, 16-point Digital I/O Module, NPN (Sink) 12~24VDC 0.5A, hot-swap support, JIS removable terminal block.
$165.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Model | AH16AN01T-5A |
| Points | 16 |
| Signals | NPN(Sink) 12~24VDC 0.5A |
| Specifications | Supports hot-swapping function, Individual LED status indicator, Supports keep-last-value function when CPU shuts down |
| Terminal block type | JIS removable terminal block |
| Powerconsumption (Internal (External)) | 0.2w / 0.4w - |
Product details
Frequently asked questions
What are the key specs of the AH16AN01T-5A?
It is a 16-point digital I/O module with NPN (sink) signals rated 12~24VDC, 0.5A per point. It supports hot-swapping, individual LED status indicators, and a keep-last-value function. The terminal block is a JIS removable type.
Where can I buy the AH16AN01T-5A?
This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
MPN
AH16AN01T-5A
