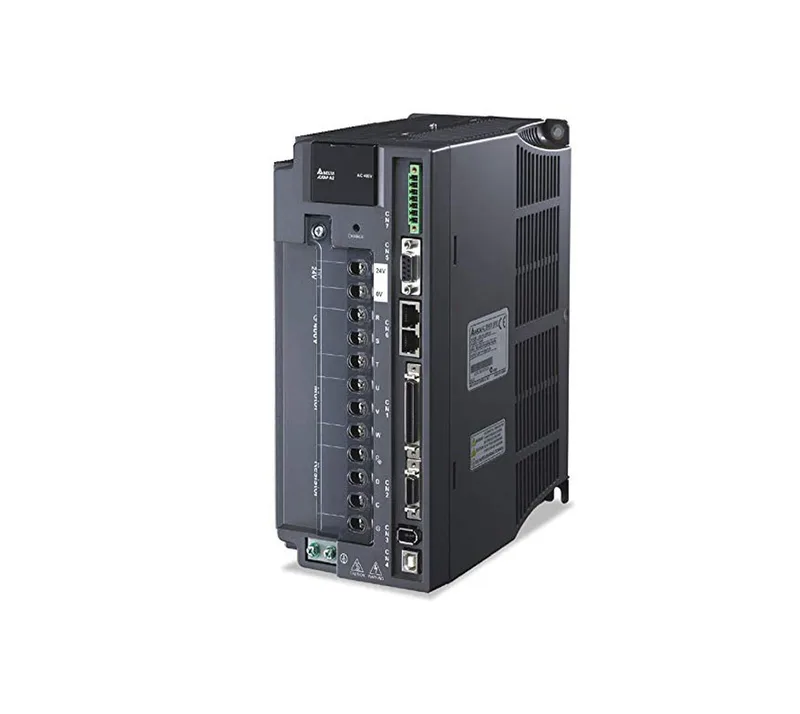

Delta ASD-A2-3023-E, ASD-A2 Series servo drive, 3 kW rated load, 19.4 A output current, 220 VAC supply, chassis mount, 0°C to 55°C operating range.
| Parameter | Value |
|---|---|
| Product type | Delta Products Servo Drives, ASD-A2 Series |
| Parameter | Value |
|---|---|
| Mounting | Chassis Mount |
| Load power | 3000W |
| Output current | 19.4A |
| Supply voltage | 220VAC |
| Operating temperature | 0°C ~ 55°C |
The ASD-A2-3023-E delivers 3 kW continuous rated load with a 19.4 A output current at 220 VAC supply — this sets the motor frame size and cable gauge for the power stage.
The closest sibling in the ASD-A2 family is the ASDA-A2-0721-M, rated 750 W with 5.1 A output — a direct drop-in for the same chassis footprint and supply voltage, but at one-quarter the power capacity.
The drive is rated for 19.4 A output current at 220 VAC supply, supporting a 3 kW continuous load.
Both drives share the same ASD-A2 series chassis mount and 220 VAC supply, so the mechanical fit and wiring interface are identical — the difference is power capacity (3 kW vs 750 W).
