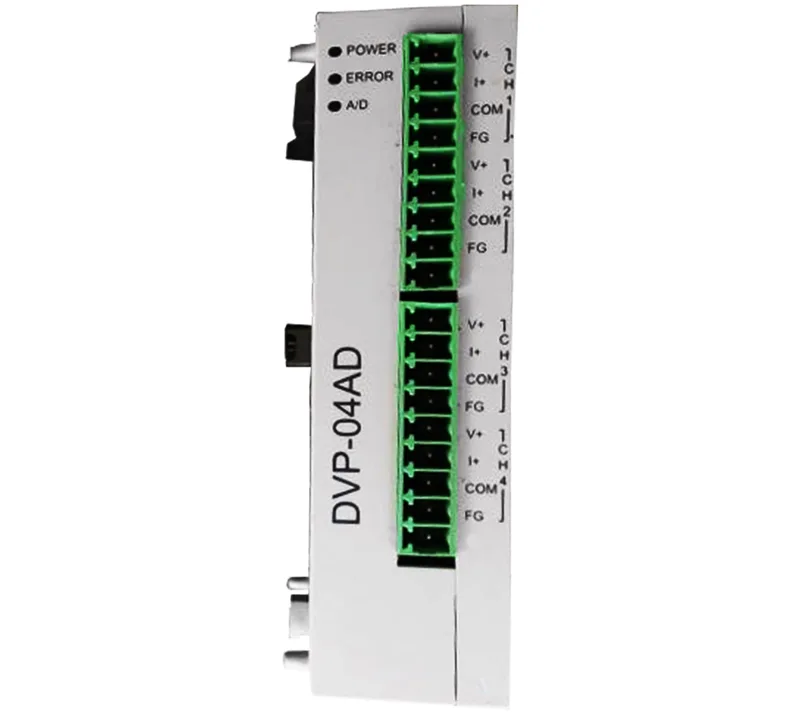

The Delta DVP04AD-SL is a 4-channel analog input module for the DVP series PLCs, offering 16-bit resolution across seven voltage and current ranges including ±10 V, 0–10 V, 0–5 V, ±5 V, 1–5 V, 0–20 mA, and 4–20 mA. With a conversion time of 250 µs per point, it samples fast enough to track pressure or temperature transients in a molding cycle without lagging the PID loop.
Signal Range Flexibility
The module accepts both voltage (1–5 V, 0–5 V, ±5 V, 0–10 V, ±10 V) and current (4–20 mA, 0–20 mA, ±20 mA) inputs, covering most industrial transducer outputs without external signal conditioners.
