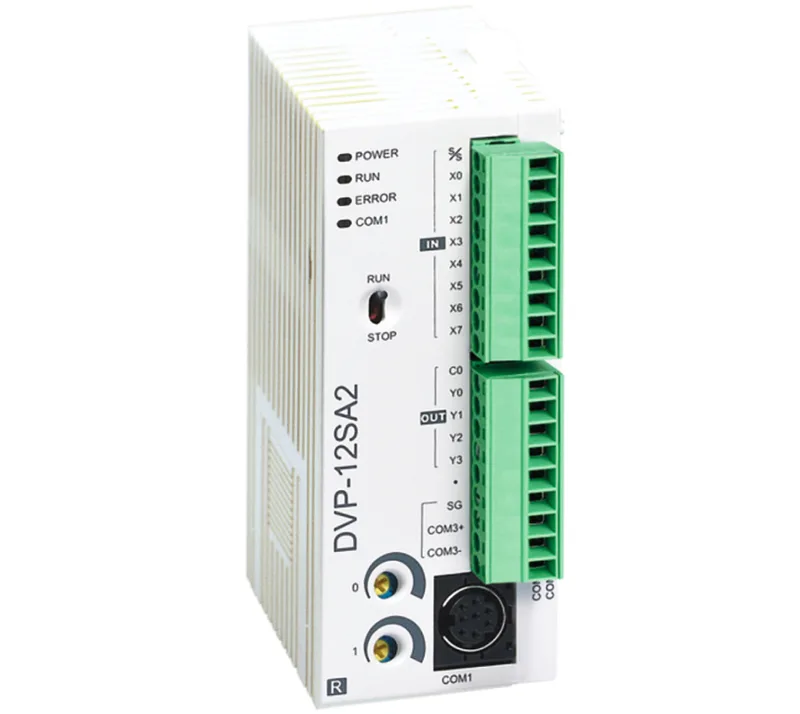

Delta DVP12SA211T
MPNDVP12SA211T
Delta-DVP12SA211T
$134.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Storage | -25 to 70°C (temp.), 5 to 95% (humidity) |
| COM port | Built-in RS-232 & 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol. |
| Operation | 0 to 55°C (temp.), 50 to 95% (humidity), Pollution degree 2 |
| MPU points | 12 (8DI + 4DO) |
| DVPPS01/PS02 | input 100 to 240 VAC, output 24 VDC/1A (PS02: 2A) |
| Max. i (O points) | 492 (12 + 480) |
| Program capacity | 16k steps |
| High-Speed pulse output | Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output. |
| International standards | IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Analog & communication i (O) | 1kV |
| Extendable to max. 8 modules | DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions. |
| RS (IEC 61131-2, IEC 61000-4-3) | 26MHz ~ 1GHz, 10V/m |
| EFT (IEC 61131-2, IEC 61000-4-4) | Power Line: 2kV, Digital I/O: 1kV, |
| ESD (IEC 61131-2, IEC 61000-4-2) | 8kV Air Discharge |
| European standard removable terminal block (Pin pitch | 3.5mm) |
MPN
DVP12SA211T
