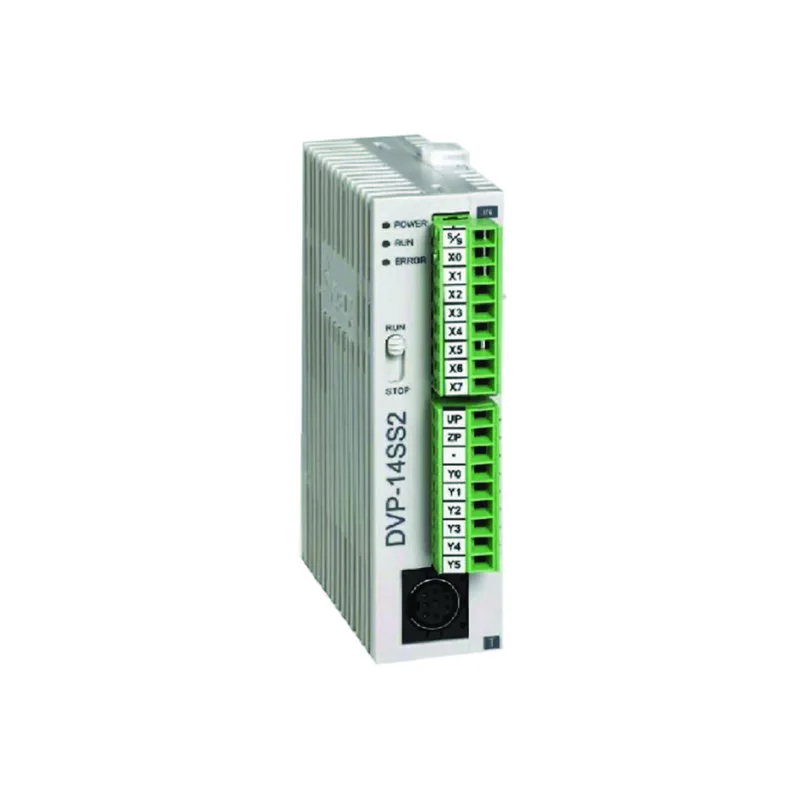

Delta DVP14SS211R
MPNDVP14SS211R
Programmable Logic Controller
$91.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Programmable Logic Controller |
| Inrush current | Max. 7.5A@24VDC |
| Power | 20.4 to 28.8 VDC |
| Power consumption | 1.8W |
| Communication port | RS-232 and RS-485, Modbus ASCII/RTU master or slave |
| ESD | 8kV Air Discharge |
| Weight | 2 Kg |
| Shipping weight | 3 kg |
| EFT | Power Line: 2kV, Digital I/O: 1kV, Analog & Comm. I/O: 250kKv |
| I/O channels | Up to 238 via expansion modules |
| Manufacturer | DELTA |
| DVPPS01(PS02) | input 100-240VAC, output 24VDC/1A(PS02: 2A) |
All specifications
| Parameter | Value |
|---|---|
| Fuse capacity | 1.85A/30VDC, Polyswitch |
| Digital inputs | 8 inputs, 24 VDC sink or source¹ |
| Digital outputs | 6 relay outputs |
| Program capacity | 8 k steps |
| Estimated lead time | 1 - 10 Working Days |
| Software up (Down counters) | Any input, up to 10 kHz on a single input |
| Insulation resistance > 5M? (all I/O point-to-ground | 500VDC) |
MPN
DVP14SS211R
