The Delta DVP15MC11T is a multi-axis motion controller built for coordinated servo and stepper control in automated lines. It runs on 24 VDC (tolerates -15% to +20%) and draws 8 W max, so a standard industrial power supply handles it without headroom surprises. The I/O complement is 16 digital inputs and 8 high-speed transistor outputs (N-MOS) — enough for a small pick-and-place cell or a gantry station. The outputs are rated for 3 A/30 VDC with a polyswitch self-resetting fuse, meaning a short on a solenoid or indicator won't blow a glass fuse; it resets after the fault clears. Isolation between the secondary side and PE is tested at 500 VDC, which covers the basic insulation requirement for industrial control panels in dry environments.

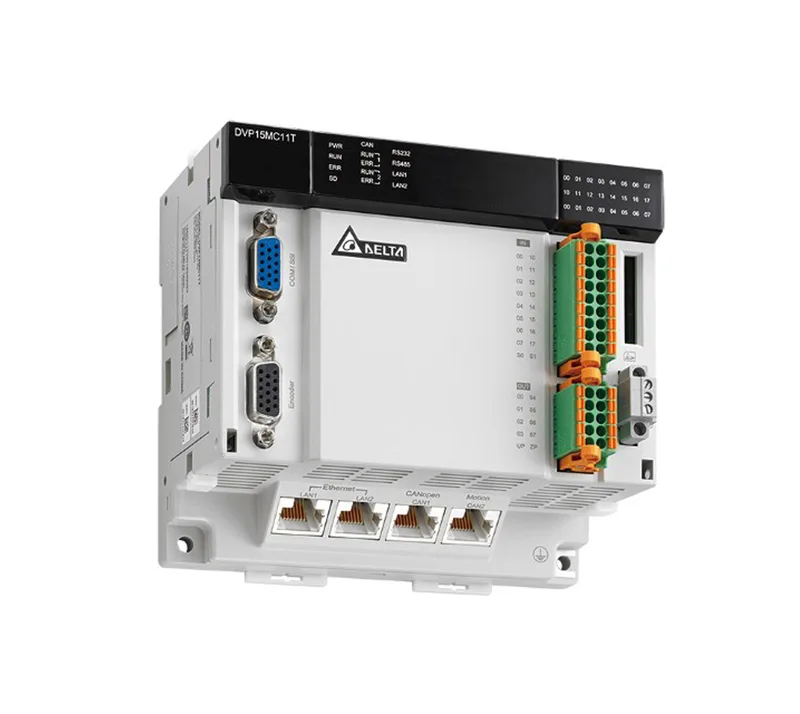

Delta DVP15MC11T Multi-axis Motion Controller, 24 VDC, 8 out
MPNDVP15MC11T
Delta DVP15MC11T Multi-axis Motion Controller, 24 VDC, 16 digital inputs, 8 high-speed transistor outputs, 8 W max consumption, 0.425 kg.
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.425 Kg |
| Channel type | High-speed digital output type for 8 channels |
| Product type | Multi-axis Motion Controller |
| Fuse capacity | 3 A/30 VDC, Polyswitch |
| Power voltage | 24 VDC(-15% ~ +20%) |
| Consumption power | 8W Max |
| Isolation voltage | 500 VDC(Secondary-PE) |
| Number of input channels | 16 channels |
| Number of output channels | 8 transistors for output (N-MOS) |
Product details
Frequently asked questions
What is DVP15MC11T's listed weight?
The DVP15MC11T weighs 0.425 kg, making it suitable for DIN-rail mounting without extra support.
What are the key I/O specifications?
The DVP15MC11T provides 16 digital inputs and 8 high-speed transistor outputs (N-MOS), each output protected by a 3 A/30 VDC polyswitch self-resetting fuse.
What power supply is required?
The controller requires a 24 VDC supply with a tolerance of -15% to +20%, and consumes 8 W maximum.
