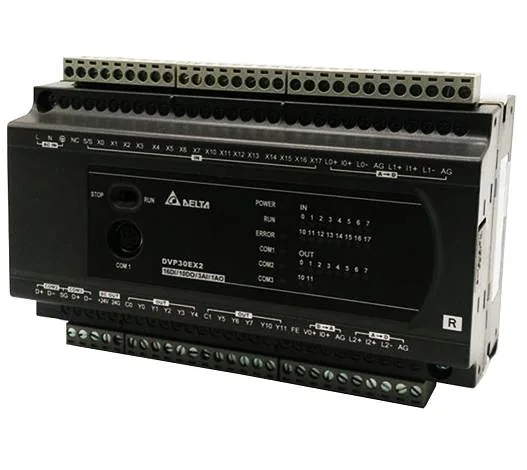

The Delta DVP30EX200T is a 30-point main processing unit from the DVP Series, specifically the EX2 series temperature/analog PLC variant. This base unit integrates analog and temperature measurement capability directly on the CPU, which means it handles thermocouple or RTD inputs without an add-on module — a space-saving choice for process loops like oven profiling or chiller control.
Delta DVP30EX200T EX2 Temperature/Analog PLC, 30 I/O
MPNDVP30EX200T
Delta DVP Series, DVP30EX200T, Main Processing Unit (Base Unit), EX2 series temperature/analog PLC, 30 I/O points.
$477.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Models | Main Processing Unit (Base Unit) |
| PLC model | DVP30EX200T |
| Product series | DVP Series |
| Inputs+Outputs points (unit) | 30 points |
Product details
Frequently asked questions
What is the closest functional sibling to DVP30EX200T?
The DVP30ES00T2 is the closest peer — same 30-point base unit form factor and same DVP Series platform. The key difference is that the EX200T is the EX2 series with onboard analog and temperature inputs, while the ES00T2 is a standard logic CPU without those integrated analog channels. If your application needs direct thermocouple or RTD connection, the EX200T is the correct choice; the ES00T2 would require separate analog expansion modules.
Will DVP30EX200T drop into a panel wired for DVP30ES00T2?
The physical footprint and I/O connector layout are identical across the 30-point DVP base units, so it will mount in the same DIN-rail location and use the same terminal assignments for digital I/O. The difference is the additional analog/temperature input terminals on the EX200T — those are simply extra connections not present on the ES00T2, so the existing wiring harness will work, but you will have unused terminals on the EX200T.
MPN
DVP30EX200T
