Delta DVP60ES00R2 — PLCs (Programmable Logic Controllers)

Delta DVP60ES00R2 DVP Series PLC, 60 I/O, Active Production

MPNDVP60ES00R2

Delta DVP Series, ES series standard PLC, Main Processing Unit (Base Unit), DVP60ES00R2, 60 I/O points.

$463.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

DVP60ES00R2 — Specifications
ParameterValue
ModelsMain Processing Unit (Base Unit)
PLC modelDVP60ES00R2
Product seriesDVP Series
Inputs+Outputs points (unit)60 points

Product details

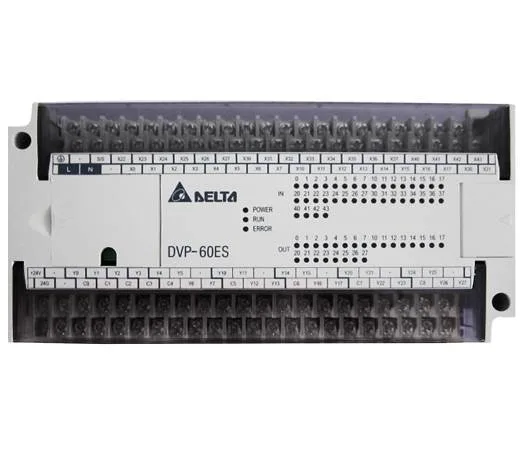

The Delta DVP60ES00R2 is a Main Processing Unit (Base Unit) from the DVP Series, classified as an ES series standard PLC. It provides 60 I/O points, making it a mid-range controller for distributed or standalone machine control.

Integration Notes

As a base unit, the DVP60ES00R2 serves as the CPU and I/O carrier in a Delta DVP-series control system. The 60-point count splits between inputs and outputs per the standard ES-series mapping; verify the specific I/O assignment against your wiring schematic before committing the panel layout.

Frequently asked questions

What is the closest functional alternative to the DVP60ES00R2?

The DVP60ES00T2 is a direct peer — same 60-point count, same ES series standard PLC classification, same base unit form factor. The key difference is the output type: the R2 uses relay outputs, while the T2 uses transistor (sink/source) outputs. If your application requires relay switching for AC or high-current DC loads, the R2 is the correct choice; for high-speed or purely DC loads, the T2 is the alternative.

Will the DVP60ES00R2 drop into a panel specified for the DVP60ES00T2 without rewiring?

The mechanical footprint and I/O point count are identical between the two, so the base unit mounts in the same panel cutout and DIN-rail position. However, the output wiring differs — relay outputs (R2) versus transistor outputs (T2) — so the field wiring to output terminals must be reviewed. Relay outputs can switch AC or DC loads up to their rated contact current, while transistor outputs require a DC supply and are polarity-sensitive. Do not assume a one-for-one swap without checking the output load type and wiring.

MPN
DVP60ES00R2
